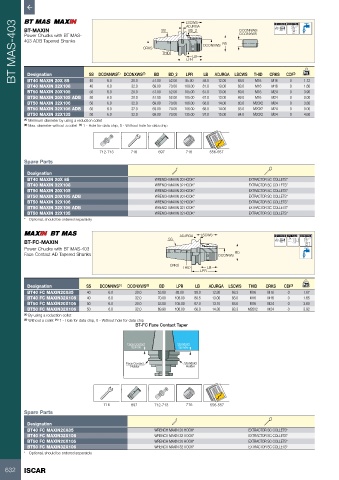

Page 634 - ISCAR(MILLINGCATALOG 38_2021)

BT MAS-403 BT-MAXIN CRKS SS LSCWS DCONXWS BD DCONNWS A 0.003 A 58-60 HRc
ADJRGA
BD_2
DCONXWS
Power Chucks with BT MAS-
403 ADB Tapered Shanks
THID
LB
LPR

LB
BD
Designation
LPR
BT40 MAXIN 20X 85
40
M16
85.00
52.00
20.0
6.0
M16
0
1.12
12.00
68.0
BT40 MAXIN 32X108 SS DCONNWS (1) DCONXWS (2) 51.00 BD_2 108.00 58.0 ADJRGA LSCWS THID CRKS CDI (3) kg
M16
6.0
0
40
83.0
13.00
81.0
70.00
32.0
69.00
M16
1.60
BT50 MAXIN 20X105 50 6.0 20.0 51.00 52.00 105.00 67.0 13.00 69.0 M16 M24 0 3.90
BT50 MAXIN 20X105 ADB 50 6.0 20.0 51.00 52.00 105.00 67.0 13.00 69.0 M16 M24 0 0.00
BT50 MAXIN 32X106 50 6.0 32.0 69.00 70.00 106.00 68.0 14.00 83.0 M20X2 M24 0 3.80
BT50 MAXIN 32X106 ADB 50 6.0 32.0 69.00 70.00 106.00 68.0 14.00 83.0 M20X2 M24 0 0.00
BT50 MAXIN 32X135 50 6.0 32.0 69.00 70.00 135.00 97.0 15.00 84.0 M20X2 M24 0 4.60
(1) Minimum diameter by using a reduction collet
(2) Max. diameter without a collet (1) 1 - Hole for data chip, 0 - Without hole for data chip
712-713 716 697 716 556-557

Spare Parts
Designation
BT40 MAXIN 20X 85 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS*
BT40 MAXIN 32X108 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS*
BT50 MAXIN 20X105 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS*
BT50 MAXIN 20X105 ADB WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS*
BT50 MAXIN 32X106 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS*
BT50 MAXIN 32X106 ADB WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS*
BT50 MAXIN 32X135 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS*
* Optional, should be ordered separately
ADJRGA LSCWS A 0.003 A AT3 Taper 58-60 HRc
BT-FC-MAXIN SS
Power Chucks with BT MAS-403
Face Contact AD Tapered Shanks DCONWS BD
CRKS
THID LB
LPR
Designation SS DCONNWS (1) DCONXWS (2) BD LPR LB ADJRGA LSCWS THID CRKS CDI (3) kg
BT40 FC MAXIN20X85 40 6.0 20.0 53.00 85.00 58.0 12.80 68.3 M16 M16 0 1.67
BT40 FC MAXIN32X108 40 6.0 32.0 70.00 108.00 80.5 13.00 83.0 M16 M16 0 1.65
BT50 FC MAXIN20X105 50 6.0 20.0 53.00 105.00 67.0 13.10 68.6 M16 M24 0 3.80
BT50 FC MAXIN32X106 50 6.0 32.0 69.90 106.00 68.0 14.30 83.3 M20X2 M24 0 3.92
(1) By using a reduction collet
(2) Without a collet (1) 1 - Hole for data chip, 0 - Without hole for data chip
BT-FC Face Contact Taper
Face Contact Standard
Spindle Spindle
Face Contact Standard
Holder Holder

716 697 712-713 716 556-557

Spare Parts
Designation
BT40 FC MAXIN20X85 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS*
BT40 FC MAXIN32X108 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS*
BT50 FC MAXIN20X105 WRENCH MAXIN 20 HOOK* EXTRACTOR SC COLLETS*
BT50 FC MAXIN32X106 WRENCH MAXIN 32 HOOK* EXTRACTOR SC COLLETS*
* Optional, should be ordered separately

632 ISCAR
