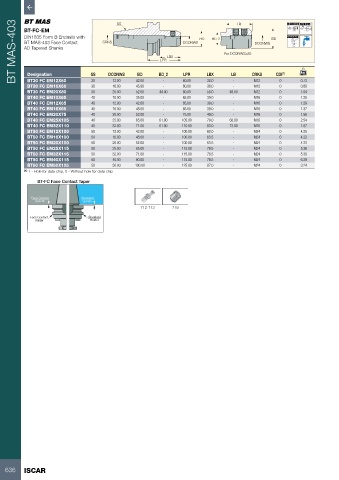

Page 638 - ISCAR(MILLINGCATALOG 38_2021)

BT MAS-403 BT-FC-EM CRKS SS LPR LBX DCONWS BD BD_2 For DCONWS≥25 DCONWS BD A 58-60 HRc A AT3 Taper
LB
0.005
DIN1835 Form B Endmills with
BT MAS-403 Face Contact
AD Tapered Shanks

kg
BD
LPR
Designation
BT30 FC EM12X60
38.0
-
30
12.00
M12
0
-
BT30 FC EM16X60 SS DCONWS 42.00 BD_2 60.00 LBX LB CRKS CDI (1) 0.73
0
16.00
45.90
30
M12
38.0
-
0.80
-
60.00
BT30 FC EM20X80 30 20.00 52.00 44.40 80.00 58.0 48.00 M12 0 1.04
BT40 FC EM10X65 40 10.00 35.00 - 65.00 39.0 - M16 0 1.25
BT40 FC EM12X65 40 12.00 42.00 - 65.00 39.0 - M16 0 1.29
BT40 FC EM16X65 40 16.00 48.00 - 65.00 39.0 - M16 0 1.37
BT40 FC EM20X75 40 20.00 52.00 - 75.00 49.0 - M16 0 1.56
BT40 FC EM25X105 40 25.00 65.00 61.00 105.00 79.0 68.00 M16 0 2.54
BT40 FC EM32X110 40 32.00 71.00 61.00 110.00 83.0 73.00 M16 0 1.87
BT50 FC EM12X100 50 12.00 42.00 - 100.00 62.0 - M24 0 4.25
BT50 FC EM16X100 50 16.00 48.00 - 100.00 63.5 - M24 0 4.22
BT50 FC EM20X100 50 20.00 52.00 - 100.00 63.5 - M24 0 4.33
BT50 FC EM25X115 50 25.00 65.00 - 115.00 78.5 - M24 0 5.36
BT50 FC EM32X115 50 32.00 71.00 - 115.00 78.5 - M24 0 5.38
BT50 FC EM40X115 50 40.00 90.00 - 115.00 78.5 - M24 0 6.29
BT50 FC EM50X125 50 50.00 100.00 - 125.00 87.0 - M24 0 3.24
(1) 1 - Hole for data chip, 0 - Without hole for data chip
BT-FC Face Contact Taper
Face Contact Standard
Spindle Spindle
712-713 719
Face Contact Standard
Holder Holder

636 ISCAR
