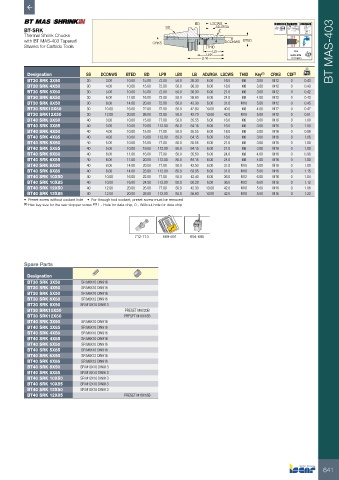

Page 643 - ISCAR(MILLINGCATALOG 38_2021)

BD LSCWS A 0.003 A AT3 Taper 50-52 HRc
BT-SRK SS ADJRGA
4˚
Thermal Shrink Chucks
with BT MAS-403 Tapered CRKS DCONWS BTED
Shanks for Carbide Tools THID
LB G2.5 BT MAS-403
LBX 25,000 RPM
LPR U<1.0 gmm

Designation SS DCONWS BTED BD LPR LBX LB ADJRGA LSCWS THID Key (1) CRKS CDI (2) kg
BT30 SRK 3X50 30 3.00 10.00 15.00 72.00 50.0 36.30 6.00 16.0 M6 3.00 M12 0 0.43
BT30 SRK 4X50 30 4.00 10.00 15.00 72.00 50.0 36.30 6.00 18.0 M6 3.00 M12 0 0.43
BT30 SRK 5X50 30 5.00 10.00 15.00 72.00 50.0 36.30 6.00 21.0 M6 3.00 M12 0 0.42
BT30 SRK 6X50 30 6.00 11.00 16.00 72.00 50.0 36.60 6.00 24.0 M8 4.00 M12 0 0.43
BT30 SRK 8X50 30 8.00 14.00 20.00 72.00 50.0 43.30 6.00 31.0 M10 5.00 M12 0 0.45
BT30 SRK10X50 30 10.00 16.00 22.00 72.00 50.0 42.80 10.00 40.0 M8 4.00 M12 0 0.47
BT30 SRK12X50 30 12.00 20.00 26.00 72.00 50.0 42.70 10.00 42.0 M10 5.00 M12 0 0.51
BT40 SRK 3X50 40 3.00 10.00 15.00 77.00 50.0 35.55 6.00 16.0 M6 3.00 M16 0 1.00
BT40 SRK 3X85 40 3.00 10.00 19.00 112.00 85.0 64.15 6.00 16.0 M6 3.00 M16 0 1.00
BT40 SRK 4X50 40 4.00 10.00 15.00 77.00 50.0 35.55 6.00 18.0 M6 3.00 M16 0 0.98
BT40 SRK 4X85 40 4.00 10.00 19.00 112.00 85.0 64.15 6.00 18.0 M6 3.00 M16 0 1.06
BT40 SRK 5X50 40 5.00 10.00 15.00 77.00 50.0 35.55 6.00 21.0 M6 3.00 M16 0 1.00
BT40 SRK 5X85 40 5.00 10.00 19.00 112.00 85.0 64.15 6.00 21.0 M6 3.00 M16 0 1.00
BT40 SRK 6X50 40 6.00 11.00 16.00 77.00 50.0 35.50 6.00 24.0 M8 4.00 M16 0 0.98
BT40 SRK 6X85 40 6.00 11.00 20.00 112.00 85.0 64.15 6.00 24.0 M8 4.00 M16 0 1.00
BT40 SRK 8X50 40 8.00 14.00 20.00 77.00 50.0 42.50 6.00 31.0 M10 5.00 M16 0 1.00
BT40 SRK 8X85 40 8.00 14.00 23.00 112.00 85.0 63.95 6.00 31.0 M10 5.00 M16 0 1.15
BT40 SRK 10X50 40 10.00 16.00 22.00 77.00 50.0 42.40 6.00 36.0 M12 6.00 M16 0 1.04
BT40 SRK 10X85 40 10.00 16.00 24.50 112.00 85.0 60.28 6.00 36.0 M12 6.00 M16 0 1.12
BT40 SRK 12X50 40 12.00 20.00 26.00 77.00 50.0 42.30 10.00 42.0 M10 5.00 M16 0 1.06
BT40 SRK 12X85 40 12.00 20.00 28.00 112.00 85.0 56.60 10.00 42.0 M10 5.00 M16 0 1.22
• Preset screw without coolant hole • For through tool coolant, preset screw must be removed
(1) Hex key size for the rear stopper screw (1) 1 - Hole for data chip, 0 - Without hole for data chip

712-713 689-691 694-695

Spare Parts

Designation
BT30 SRK 3X50 SR M6X10 DIN916
BT30 SRK 4X50 SR M6X10 DIN916
BT30 SRK 5X50 SR M6X10 DIN916
BT30 SRK 6X50 SR M8X12 DIN916
BT30 SRK 8X50 SR M10X10 DIN913
BT30 SRK10X50 PRESET M8X20B
BT30 SRK12X50 PRESET M10X18B
BT40 SRK 3X50 SR M6X10 DIN916
BT40 SRK 3X85 SR M6X10 DIN916
BT40 SRK 4X50 SR M6X10 DIN916
BT40 SRK 4X85 SR M6X10 DIN916
BT40 SRK 5X50 SR M6X10 DIN916
BT40 SRK 5X85 SR M6X10 DIN916
BT40 SRK 6X50 SR M8X12 DIN916
BT40 SRK 6X85 SR M8X12 DIN916
BT40 SRK 8X50 SR M10X10 DIN913
BT40 SRK 8X85 SR M10X10 DIN913
BT40 SRK 10X50 SR M12X10 DIN913
BT40 SRK 10X85 SR M12X10 DIN913
BT40 SRK 12X50 SR M10X18 DIN913
BT40 SRK 12X85 PRESET M10X18B

641
