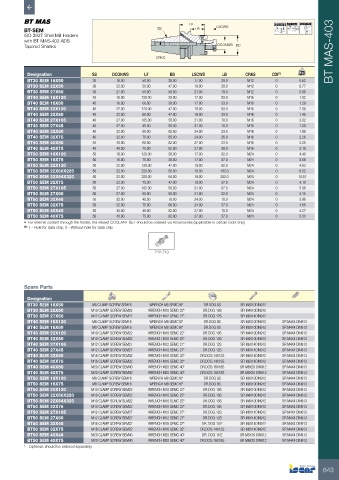

Page 645 - ISCAR(MILLINGCATALOG 38_2021)

LF A 0.005 A AT3 Taper 58-60 HRc
BT-SEM SS LB LSCWS
ISO 3937 Shell Mill Holders
with BT MAS-403 ADB
Tapered Shanks DCONWS BD BT MAS-403
CRKS

Designation SS DCONWS LF BD LSCWS LB CRKS CDI (1) kg
BT30 SEM 16X50 30 16.00 50.00 38.00 17.00 28.0 M12 0 0.62
BT30 SEM 22X50 30 22.00 50.00 47.00 19.00 28.0 M12 0 0.77
BT30 SEM 27X50 30 27.00 50.00 58.00 21.00 18.0 M12 0 0.88
BT40 SEM 16X120 40 16.00 120.00 38.00 17.00 93.0 M16 0 1.82
BT40 SEM 16X60 40 16.00 60.00 38.00 17.00 33.0 M16 0 1.29
BT40 SEM 22X120 40 22.00 120.00 47.00 19.00 93.0 M16 0 2.38
BT40 SEM 22X60 40 22.00 60.00 47.00 19.00 33.0 M16 0 1.45
BT40 SEM 27X105 40 27.00 105.00 58.00 21.00 78.0 M16 0 2.62
BT40 SEM 27X45 40 27.00 45.00 58.00 21.00 18.0 M16 0 1.39
BT40 SEM 32X60 40 32.00 60.00 65.50 24.00 23.0 M16 0 1.88
BT40 SEM 32X75 40 32.00 75.00 65.00 24.00 36.0 M16 0 2.26
BT40 SEM 40X60 40 40.00 60.00 82.00 27.00 23.0 M16 0 2.25
BT40 SEM 40X75 40 40.00 75.00 82.00 27.00 38.0 M16 0 3.10
BT50 SEM 16X120 50 16.00 120.00 38.00 17.00 82.0 M24 0 4.40
BT50 SEM 16X75 50 16.00 75.00 38.00 17.00 37.0 M24 0 3.86
BT50 SEM 22X120 50 22.00 120.00 47.00 19.00 82.0 M24 0 4.63
BT50 SEM 22X50X220 50 22.00 220.00 50.00 19.00 182.0 M24 0 6.52
BT50 SEM 22X64X320 50 22.00 320.00 64.00 19.00 282.0 M24 0 10.51
BT50 SEM 22X75 50 22.00 75.00 47.00 19.00 37.0 M24 0 4.10
BT50 SEM 27X105 50 27.00 105.00 58.00 21.00 67.0 M24 0 5.08
BT50 SEM 27X60 50 27.00 60.00 58.00 21.00 22.0 M24 0 4.15
BT50 SEM 32X48 50 32.00 48.00 78.00 24.00 10.0 M24 0 3.96
BT50 SEM 32X75 50 32.00 75.00 66.00 24.00 37.0 M24 0 4.65
BT50 SEM 40X48 50 40.00 48.00 82.00 27.00 10.0 M24 0 4.27
BT50 SEM 40X75 50 40.00 75.00 82.00 27.00 37.0 M24 0 5.33
• For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only)
(1) 1 - Hole for data chip, 0 - Without hole for data chip

712-713

Spare Parts

Designation
BT30 SEM 16X50 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912
BT30 SEM 22X50 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912
BT30 SEM 27X50 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X14DIN912
BT40 SEM 16X120 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912 SR M4X4 DIN913
BT40 SEM 16X60 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912 SR M4X4 DIN913
BT40 SEM 22X120 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913
BT40 SEM 22X60 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913
BT40 SEM 27X105 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X14DIN912 SR M4X4 DIN913
BT40 SEM 27X45 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X14DIN912 SR M4X4 DIN913
BT40 SEM 32X60 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913
BT40 SEM 32X75 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913
BT40 SEM 40X60 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* DR.DOG 16X18S SR M6X20 DIN912 SR M4X4 DIN913
BT40 SEM 40X75 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* DR.DOG 16X18S SR M6X20 DIN912 SR M4X4 DIN913
BT50 SEM 16X120 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912 SR M4X4 DIN913
BT50 SEM 16X75 M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912 SR M4X4 DIN913
BT50 SEM 22X120 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913
BT50 SEM 22X50X220 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913
BT50 SEM 22X64X320 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913
BT50 SEM 22X75 M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913
BT50 SEM 27X105 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X14DIN912 SR M4X4 DIN913
BT50 SEM 27X60 M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X14DIN912 SR M4X4 DIN913
BT50 SEM 32X48 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR. DOG 14 E SR M5X14DIN912 SR M4X4 DIN913
BT50 SEM 32X75 M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913
BT50 SEM 40X48 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* DR. DOG 16 E SR M5X16 DIN912 SR M4X4 DIN913
BT50 SEM 40X75 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* DR.DOG 16X18S SR M6X20 DIN912 SR M4X4 DIN913
* Optional, should be ordered separately

643
