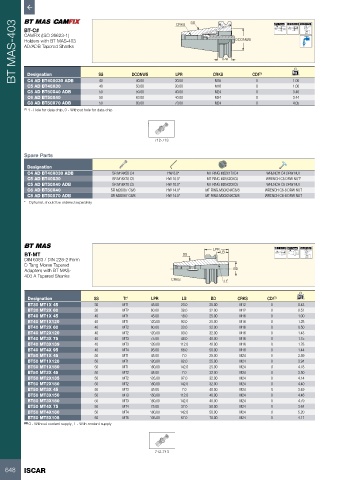

Page 650 - ISCAR(MILLINGCATALOG 38_2021)

BT-C# CRKS SS AT3 Taper A 0.003 A 58-60 HRc
BT MAS-403 Holders with BT MAS-403 LPR DCONWS
CAMFIX (ISO 26623-1)

AD/ADB Tapered Shanks

kg
Designation
LPR
C4 AD BT40X030 ADB
40
M16
40.00
C5 AD BT40X30 SS DCONWS 30.00 CRKS CDI 0 0 (1) 1.00
1.00
M16
50.00
40
30.00
C5 AD BT50X40 ADB 50 50.00 40.00 M24 0 3.46
C6 AD BT50X40 50 63.00 40.00 M24 0 3.44
C8 AD BT50X70 ADB 50 80.00 70.00 M24 0 4.05
(1) 1 - Hole for data chip, 0 - Without hole for data chip
712-713

Spare Parts
Designation
C4 AD BT40X030 ADB SR M14X58 C4 HW 8.0* MT RING M22X17XC4 WRENCH C4 DRW NUT
C5 AD BT40X30 SR M16X70 C5 HW 10.0* MT RING M25X20XC5 WRENCH C5 DRW NUT*
C5 AD BT50X40 ADB SR M16X70 C5 HW 10.0* MT RING M25X20XC5 WRENCH C5 DRW NUT
C6 AD BT50X40 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 WRENCH C6-8 DRW NUT
C8 AD BT50X70 ADB SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 WRENCH C6-8 DRW NUT
* Optional, should be ordered separately

LPR A 0.01 A AT3 Taper 58-60 HRc
BT-MT SS LB
DIN 6383 / DIN 228-2 Form
D Tang Morse Tapered
Adapters with BT MAS- BD
403 A Tapered Shanks
CRKS Tt˚

Designation SS Tt° LPR LB BD CRKS CDI (1) kg
BT30 MT1X 45 30 MT1 45.00 23.0 25.00 M12 0 0.43
BT30 MT2X 60 30 MT2 60.00 38.0 32.00 M12 0 0.51
BT40 MT1X 45 40 MT1 45.00 18.0 25.00 M16 0 1.00
BT40 MT1X120 40 MT1 120.00 93.0 25.00 M16 0 1.28
BT40 MT2X 60 40 MT2 60.00 33.0 32.00 M16 0 0.50
BT40 MT2X120 40 MT2 120.00 93.0 32.00 M16 0 1.43
BT40 MT3X 75 40 MT3 75.00 48.0 40.00 M16 0 1.15
BT40 MT3X139 40 MT3 139.00 112.0 40.00 M16 0 1.78
BT40 MT4X 95 40 MT4 95.00 68.0 50.00 M16 0 1.44
BT50 MT1X 45 50 MT1 45.00 7.0 25.00 M24 0 3.59
BT50 MT1X120 50 MT1 120.00 82.0 25.00 M24 0 3.94
BT50 MT1X180 50 MT1 180.00 142.0 25.00 M24 0 4.18
BT50 MT2X 45 50 MT2 45.00 7.0 32.00 M24 0 3.50
BT50 MT2X135 50 MT2 135.00 97.0 32.00 M24 0 4.14
BT50 MT2X180 50 MT2 180.00 142.0 32.00 M24 0 4.40
BT50 MT3X 45 50 MT3 45.00 7.0 40.00 M24 0 3.49
BT50 MT3X150 50 MT3 150.00 112.0 40.00 M24 0 4.46
BT50 MT3X180 50 MT3 180.00 142.0 40.00 M24 0 4.79
BT50 MT4X 75 50 MT4 75.00 37.0 50.00 M24 0 3.64
BT50 MT4X180 50 MT4 180.00 142.0 50.00 M24 0 5.20
BT50 MT5X105 50 MT5 105.00 67.0 70.00 M24 0 4.17
(3) 0 - Without coolant supply, 1 - With coolant supply

712-713

648 ISCAR
