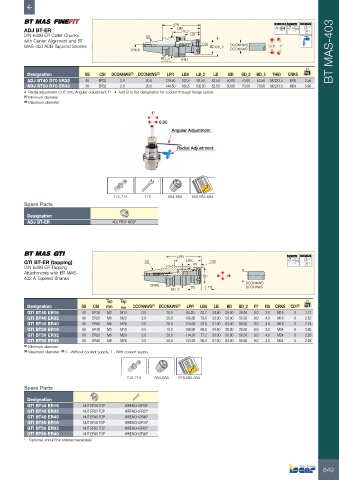

LPR LBX A 0.003 A AT3 Taper 58-60 HRc
ADJ BT-ER LB_2
DIN 6499 ER Collet Chucks SS LB
with Center Alignment and BT
MAS-403 ADB Tapered Shanks CSI BD BD_2 DCONNWS 0.05 1°
CRKS DCONXWS BT MAS-403
BD_3 THID

Designation SS CSI DCONNWS (1) DCONXWS (2) LPR LBX LB_2 LB BD BD_2 BD_3 THID CRKS kg
ADJ BT40 D70 ER32 40 ER32 2.0 20.0 129.50 102.5 92.50 52.50 50.00 70.00 62.50 M22X1.5 M16 2.56
ADJ BT50 D70 ER32 50 ER32 2.0 20.0 144.50 106.5 106.50 52.50 50.00 70.00 70.00 M22X1.5 M24 5.90
• Radial adjustment 0.05 mm, Angular adjustment 1° • Add B to the designation for coolant through flange option.
(1) Minimum diameter
(2) Maximum diameter
1°
0.05
Angular Adjustment

Radial Adjustment

712-713 715 684-688 558,682-684

Spare Parts
Designation
ADJ BT-ER ADJ ER32 NOSE

LPR AT3 Taper 58-60 HRc

GTI BT-ER (tapping) SS LBX LB CSI
DIN 6499 ER Tapping
Attachments with BT MAS-
403 A Tapered Shanks BD
DCONNWS
CRKS
BD_2 Flb Flf DCONXWS
Tap Tap
Designation SS CSI min max DCONNWS (1) DCONXWS (2) LPR LBX LB BD BD_2 Flf Flb CRKS CDI (3) kg
GTI BT40 ER16 40 ER16 M3 M10 0.5 10.0 84.20 52.7 24.60 28.00 29.50 8.0 3.0 M16 0 1.17
GTI BT40 ER32 40 ER32 M6 M20 2.0 20.0 106.80 79.8 33.00 50.00 56.50 9.0 4.0 M16 0 2.52
GTI BT40 ER40 40 ER40 M6 M28 3.0 26.0 124.80 97.8 51.00 63.00 56.50 9.0 4.0 M16 0 2.24
GTI BT50 ER16 50 ER16 M3 M10 0.5 10.0 106.80 68.8 24.60 28.00 29.50 8.0 3.0 M24 0 3.85
GTI BT50 ER32 50 ER32 M6 M20 2.0 20.0 114.20 77.2 33.00 50.00 56.50 9.0 4.0 M24 0 2.28
GTI BT50 ER40 50 ER40 M6 M28 3.0 26.0 133.20 95.2 51.00 63.00 56.50 9.0 4.0 M24 0 2.28
(1) Minimum diameter
(2) Maximum diameter (3) 0 - Without coolant supply, 1 - With coolant supply

712-713 684-688 678,682-684

Spare Parts

Designation
GTI BT40 ER16 NUT ER16 TOP WRENCH ER16*
GTI BT40 ER32 NUT ER32 TOP WRENCH ER32*
GTI BT40 ER40 NUT ER40 TOP WRENCH ER40*
GTI BT50 ER16 NUT ER16 TOP WRENCH ER16*
GTI BT50 ER32 NUT ER32 TOP WRENCH ER32*
GTI BT50 ER40 NUT ER40 TOP WRENCH ER40*
* Optional, should be ordered separately
