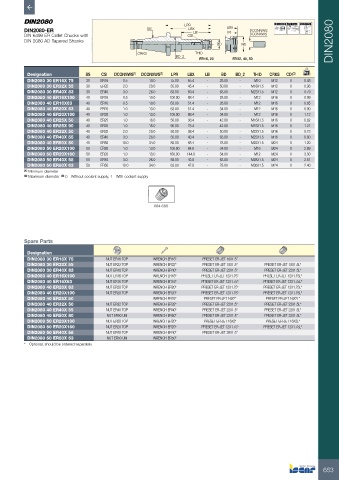

Page 655 - ISCAR(MILLINGCATALOG 38_2021)

LPR A 0.003 A AT3 Taper 58-60 HRc
DIN2080-ER SS LBX LB LBX DCONNWS
LB
DIN 6499 ER Collet Chucks with CSI DCONXWS
DIN 2080 AD Tapered Shanks DIN2080
BD BD
CRKS THID
BD_2
ER16, 20 ER32, 40, 50

Designation SS CSI DCONNWS (1) DCONXWS (2) LPR LBX LB BD BD_2 THID CRKS CDI (3) kg
DIN2080 30 ER16X 75 30 ER16 0.5 10.0 75.00 65.4 - 28.00 - M10 M12 0 0.48
DIN2080 30 ER32X 55 30 ER32 2.0 20.0 55.00 45.4 - 50.00 - M18X1.5 M12 0 0.36
DIN2080 30 ER40X 83 30 ER40 3.0 26.0 83.00 69.4 - 63.00 - M22X1.5 M12 0 0.79
DIN2080 40 ER16X100 40 ER16 0.5 10.0 100.00 88.4 - 28.00 - M12 M16 0 0.99
DIN2080 40 ER16X63 40 ER16 0.5 10.0 63.00 51.4 - 28.00 - M12 M16 0 0.85
DIN2080 40 ER20X 63 40 ER20 1.0 13.0 63.00 51.4 - 34.00 - M12 M16 0 0.90
DIN2080 40 ER20X100 40 ER20 1.0 13.0 100.00 88.4 - 34.00 - M12 M16 0 1.12
DIN2080 40 ER25X 50 40 ER25 1.0 16.0 50.00 38.4 - 42.00 - M16X1.5 M16 0 0.82
DIN2080 40 ER25X 90 40 ER25 1.0 16.0 90.00 78.4 - 42.00 - M16X1.5 M16 0 1.21
DIN2080 40 ER32X 50 40 ER32 2.0 20.0 50.00 38.4 - 50.00 - M22X1.5 M16 0 0.73
DIN2080 40 ER40X 55 40 ER40 3.0 26.0 55.00 43.4 - 63.00 - M22X1.5 M16 0 0.80
DIN2080 40 ER50X 80 40 ER50 10.0 34.0 80.00 68.4 - 78.00 - M22X1.5 M24 0 1.20
DIN2080 50 ER20X100 50 ER20 1.0 13.0 100.00 84.8 - 34.00 - M16 M24 0 2.89
DIN2080 50 ER20X160 50 ER20 1.0 13.0 160.00 144.8 - 34.00 - M12 M24 0 3.30
DIN2080 50 ER40X 58 50 ER40 3.0 26.0 58.00 42.8 - 63.00 - M28X1.5 M24 0 2.51
DIN2080 50 ER50X 63 50 ER50 10.0 34.0 63.00 47.8 - 78.00 - M36X1.5 M24 0 2.40
(1) Minimum diameter
(2) Maximum diameter (3) 0 - Without coolant supply, 1 - With coolant supply

684-688

Spare Parts

Designation
DIN2080 30 ER16X 75 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 10X1.5*
DIN2080 30 ER32X 55 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 18X1.5* PRESET ER-JET 18X1.5L*
DIN2080 30 ER40X 83 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L*
DIN2080 40 ER16X100 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
DIN2080 40 ER16X63 NUT ER16 TOP WRENCH ER16* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
DIN2080 40 ER20X 63 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
DIN2080 40 ER20X100 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
DIN2080 40 ER25X 50 WRENCH ER25* PRESET ER-JET 16X2* PRESET ER-JET 16X2L*
DIN2080 40 ER32X 50 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L*
DIN2080 40 ER40X 55 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L*
DIN2080 40 ER50X 80 NUT ER50 UM WRENCH ER50* PRESET ER-JET 22X1.5* PRESET ER-JET 22X1.5L*
DIN2080 50 ER20X100 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 16X2* PRESET ER-JET 16X2L*
DIN2080 50 ER20X160 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
DIN2080 50 ER40X 58 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 28X1.5*
DIN2080 50 ER50X 63 NUT ER50 UM WRENCH ER50*
* Optional, should be ordered separately

653
