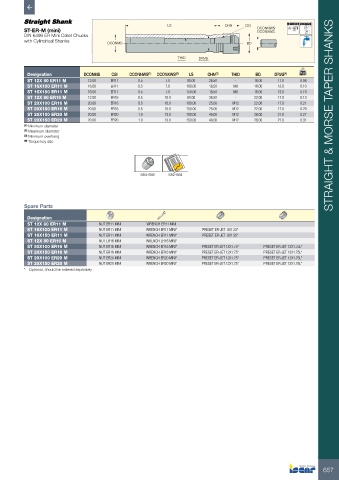

Page 659 - ISCAR(MILLINGCATALOG 38_2021)

LS A 0.005 A 58-60 HRc
ST-ER-M (mini) OHN CSI DCONNWS
DCONXWS
DIN 6499 ER Mini Collet Chucks
with Cylindrical Shanks DCONMS BD

THID DRVS

Designation DCONMS CSI DCONNWS (1) DCONXWS (2) LS OHN (3) THID BD DRVS (4) kg
ST 12X 80 ER11 M 12.00 ER11 0.5 7.0 80.00 26.50 - 16.00 11.0 0.06
ST 16X100 ER11 M 16.00 ER11 0.5 7.0 100.00 18.50 M8 16.00 13.0 0.10
ST 16X150 ER11 M 16.00 ER11 0.5 7.0 150.00 18.50 M8 16.00 13.0 0.19
ST 12X 80 ER16 M 12.00 ER16 0.5 10.0 80.00 36.50 - 22.00 17.0 0.13
ST 20X100 ER16 M 20.00 ER16 0.5 10.0 100.00 25.00 M12 22.00 17.0 0.21
ST 20X150 ER16 M 20.00 ER16 0.5 10.0 150.00 25.00 M12 22.00 17.0 0.29
ST 20X100 ER20 M 20.00 ER20 1.0 13.0 100.00 40.00 M12 28.00 21.0 0.27 STRAIGHT & MORSE TAPER SHANKS
ST 20X150 ER20 M 20.00 ER20 1.0 13.0 150.00 40.00 M12 28.00 21.0 0.31
(1) Minimum diameter
(2) Maximum diameter
(3) Minimum overhang
(4) Torque key size

684-688 682-684

Spare Parts

Designation
ST 12X 80 ER11 M NUT ER11 MINI WRENCH ER11 MINI
ST 16X100 ER11 M NUT ER11 MINI WRENCH ER11 MINI* PRESET ER-JET 8X1.25*
ST 16X150 ER11 M NUT ER11 MINI WRENCH ER11 MINI* PRESET ER-JET 8X1.25*
ST 12X 80 ER16 M NUT ER16 MINI WRENCH ER16 MINI*
ST 20X100 ER16 M NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
ST 20X150 ER16 M NUT ER16 MINI WRENCH ER16 MINI* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
ST 20X100 ER20 M NUT ER20 MINI WRENCH ER20 MINI* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
ST 20X150 ER20 M NUT ER20 MINI WRENCH ER20 MINI* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
* Optional, should be ordered separately
