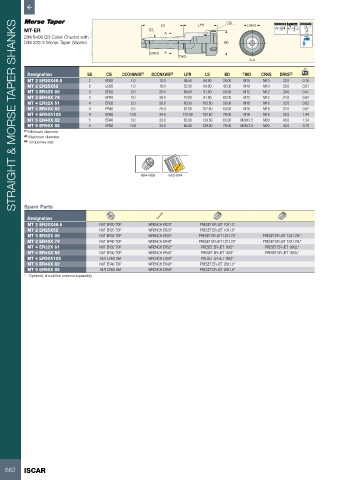

Page 664 - ISCAR(MILLINGCATALOG 38_2021)

LPR CSI A 0.003 A AT3 Taper 58-60 HRc
STRAIGHT & MORSE TAPER SHANKS
MT-ER SS LS A DRVS
DIN 6499 ER Collet Chucks with
DIN 228-2 Morse Taper Shanks BD
CRKS A
THID
A-A

Designation SS CSI DCONNWS (1) DCONXWS (2) LPR LS BD THID CRKS DRVS (3) kg
MT 2 ER20X48.5 2 ER20 1.0 13.0 48.50 64.00 34.00 M10 M10 22.0 0.16
MT 2 ER25X52 2 ER25 1.0 16.0 52.00 64.00 42.00 M10 M10 28.0 0.21
MT 3 ER32X 69 3 ER32 2.0 20.0 69.00 81.00 50.00 M12 M12 24.0 0.47
MT 3 ER40X 79 3 ER40 3.0 26.0 79.00 81.00 63.00 M12 M12 24.0 0.64
MT 4 ER32X 61 4 ER32 2.0 20.0 60.50 102.50 50.00 M16 M16 32.0 0.62
MT 4 ER40X 82 4 ER40 3.0 26.0 81.50 102.50 63.00 M16 M16 32.0 0.82
MT 4 ER50X108 4 ER50 10.0 34.0 107.50 102.50 78.00 M16 M16 32.0 1.44
MT 5 ER40X 82 5 ER40 3.0 26.0 82.00 129.50 63.00 M28X1.5 M20 45.0 1.54
MT 5 ER50X 85 5 ER50 10.0 34.0 85.00 129.50 78.00 M28X1.5 M20 45.0 0.70
(1) Minimum diameter
(2) Maximum diameter
(3) Torque key size

684-688 682-684

Spare Parts
Designation
MT 2 ER20X48.5 NUT ER20 TOP WRENCH ER20* PRESET ER-JET 10X1.5*
MT 2 ER25X52 NUT ER25 TOP WRENCH ER25* PRESET ER-JET 10X1.5*
MT 3 ER32X 69 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
MT 3 ER40X 79 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 12X1.75* PRESET ER-JET 12X1.75L*
MT 4 ER32X 61 NUT ER32 TOP WRENCH ER32* PRESET ER-JET 16X2* PRESET ER-JET 16X2L*
MT 4 ER40X 82 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 16X2* PRESET ER-JET 16X2L*
MT 4 ER50X108 NUT ER50 UM WRENCH ER50* PRESET ER-JET 16X2*
MT 5 ER40X 82 NUT ER40 TOP WRENCH ER40* PRESET ER-JET 28X1.5*
MT 5 ER50X 85 NUT ER50 UM WRENCH ER50* PRESET ER-JET 28X1.5*
* Optional, should be ordered separately
