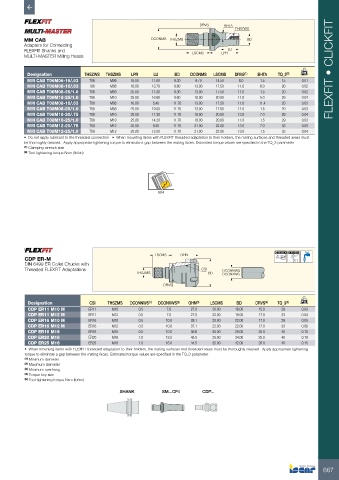

Page 669 - ISCAR(MILLINGCATALOG 38_2021)
P. 669

DRVS     BHTA
                                                                                    THSZWS
          MM CAB                                      DCONMS THSZMS                     BD
          Adapters for Connecting
          FLEXFIT Shanks and                                         LSCMS     LPR LU
          MULTI-MASTER Milling Heads


           Designation         THSZWS  THSZMS  LPR     LU     BD    DCONMS  LSCMS  DRVS (1)  BHTA  TQ_3 (2)  kg       FLEXFIT • CLICKFIT
           MM CAB T06M06-16/.63  T06    M06    16.00  11.60   9.30    9.70   14.50   8.0    1.5     15     0.01
           MM CAB T06M08-16/.63  T06    M08    16.00  13.70   9.60   13.00   17.50   11.0   6.0     20     0.02
           MM CAB T06M08-25/1.0  T06    M08    25.00  11.30   9.30   13.00   17.50   11.0   1.5     20     0.02
           MM CAB T06M10-25/1.0  T06    M10    25.00  16.60   9.60   18.00   20.00   11.0   5.0     29     0.04
           MM CAB T08M08-16/.63  T08    M08    16.00   5.40   11.70  13.00   17.50   11.0   11.4    20     0.03
           MM CAB T08M08-25/1.0  T08    M08    25.00  19.50   11.70  13.00   17.50   11.0   1.5     20     0.03
           MM CAB T08M10-20/.75  T08    M10    20.00  11.30   11.70  18.00   20.00   13.0   7.0     29     0.04
           MM CAB T08M10-25/1.0  T08    M10    25.00  14.20   11.70  18.00   20.00   11.0   1.5     29     0.03
           MM CAB T08M12-20/.75  T08    M12    20.00   9.30   11.70  21.00   22.00   13.0   7.0     33     0.05
           MM CAB T08M12-25/1.0  T08    M12    25.00  12.50   11.70  21.00   22.00   13.0   1.5     33     0.04
          •  Do not apply lubricant to the threaded connection   •  When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must
          be thoroughly cleaned.  Apply appropriate tightening torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
          (1)  Clamping wrench size
          (2)  Tool tightening torque Nxm (lbfxin)







                                                         664









                                                                                                  A  0.003  A 58-60 HRc
          CDP ER-M                                     LSCMS    OHN
          DIN 6499 ER Collet Chucks with
          Threaded FLEXFIT Adaptations                                  CSI    DCONNWS
                                                 THSZMS                   BD   DCONXWS

                                                          DRVS


           Designation          CSI    THSZMS  DCONNWS (1)  DCONXWS (2)  OHN (3)  LSCMS  BD  DRVS (4)  TQ_3 (5)  kg
           CDP ER11 M10 M       ER11    M10       0.5       7.0     27.0    20.00   16.00   15.0    29     0.03
           CDP ER11 M12 M       ER11    M12       0.5       7.0     27.0    22.00   16.00   17.0    33     0.04
           CDP ER16 M10 M       ER16    M10       0.5      10.0     38.1    20.00   22.00   17.0    29     0.05
           CDP ER16 M12 M       ER16    M12       0.5      10.0     37.1    22.00   22.00   17.0    33     0.06
           CDP ER16 M16         ER16    M16       0.5      10.0     36.6    25.00   28.00   25.0    40     0.10
           CDP ER20 M16         ER20    M16       1.0      13.0     45.5    25.00   34.00   25.0    40     0.19
           CDP ER25 M16         ER25    M16       1.0      16.0     44.5    25.00   42.00   28.0    40     0.15
          •  When mounting items with FLEXFIT threaded adaptation to their holders, the mating surfaces and threaded areas must be thoroughly cleaned.  Apply appropriate tightening
          torque to eliminate a gap between the mating faces. Estimated torque values are specified in the TQ_3 parameter
          (1)  Minimum diameter
          (2)  Maximum diameter
          (3)  Minimum overhang
          (4)  Torque key size
          (5)  Tool tightening torque Nxm (lbfxin)
