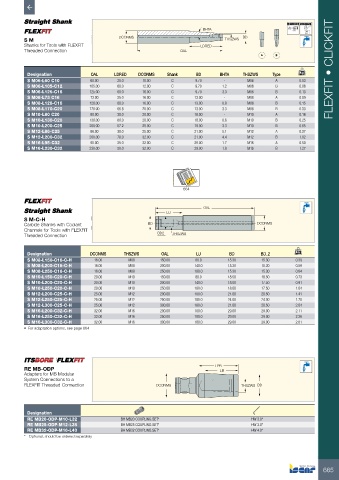

Page 667 - ISCAR(MILLINGCATALOG 38_2021)

A 0.005 A 58-60 HRc
BHTA
S M DCONMS THSZWS BD
Shanks for Tools with FLEXFIT LDRED
Threaded Connection OAL
A B

Designation OAL LDRED DCONMS Shank BD BHTA THSZWS Type kg FLEXFIT • CLICKFIT
S M06-L60 C10 60.00 20.0 10.00 C 9.70 - M06 A 0.03
S M06-L105-C12 105.00 60.0 12.00 C 9.70 1.2 M06 B 0.06
S M06-L125-C16 125.00 60.0 16.00 C 9.70 3.3 M06 B 0.13
S M08-L73 C16 73.00 25.0 16.00 C 13.00 - M08 A 0.09
S M08-L128-C16 128.00 80.0 16.00 C 13.00 0.9 M08 B 0.15
S M08-L170-C20 170.00 66.8 20.00 C 13.00 3.3 M08 B 0.33
S M10-L80 C20 80.00 30.0 20.00 C 18.00 - M10 A 0.16
S M10-L130-C20 130.00 80.0 20.00 C 18.00 0.6 M10 B 0.25
S M10-L200-C25 200.00 57.2 25.00 C 19.00 3.3 M10 B 0.65
S M12-L86-C25 86.00 30.0 25.00 C 21.00 5.1 M12 A 0.27
S M12-L200-C32 200.00 78.0 32.00 C 21.00 4.4 M12 B 1.02
S M16-L95-C32 95.00 35.0 32.00 C 29.00 1.7 M16 A 0.50
S M16-L230-C32 230.00 50.0 32.00 C 29.00 1.8 M16 B 1.27

664

LU OAL
S M-C-H
Carbide Shanks with Coolant BD DCONMS
Channels for Tools with FLEXFIT
Threaded Connection BD2 THSZWS

Designation DCONMS THSZWS OAL LU BD BD_2 kg
S M08-L150-C16-C-H 16.00 M08 150.00 80.0 15.30 15.30 0.39
S M08-L200-C16-C-H 16.00 M08 200.00 140.0 15.30 15.30 0.59
S M08-L250-C16-C-H 16.00 M08 250.00 180.0 15.30 15.30 0.84
S M10-L150-C20-C-H 20.00 M10 150.00 80.0 18.50 18.50 0.73
S M10-L200-C20-C-H 20.00 M10 200.00 140.0 18.00 17.50 0.91
S M10-L250-C20-C-H 20.00 M10 250.00 180.0 18.00 17.50 1.04
S M12-L200-C25-C-H 25.00 M12 200.00 100.0 21.00 20.50 1.41
S M12-L250-C25-C-H 25.00 M12 250.00 180.0 24.00 24.00 1.78
S M12-L300-C25-C-H 25.00 M12 300.00 180.0 21.00 20.50 2.04
S M16-L200-C32-C-H 32.00 M16 200.00 100.0 29.00 29.00 2.11
S M16-L250-C32-C-H 32.00 M16 250.00 180.0 29.00 29.00 2.36
S M16-L300-C32-C-H 32.00 M16 300.00 180.0 29.00 29.00 2.81
• For adaptation options, see page 664

RE MB-ODP LPR LB
Adapters for MB Modular
System Connections to a
FLEXFIT Threaded Connection DCONMS THSZWS BD

Designation
RE MB20-ODP-M10-L32 BH MB20 COUPLING SET* HW 3.0*
RE MB25-ODP-M12-L38 BH MB25 COUPLING SET* HW 3.0*
RE MB32-ODP-M16-L40 BH MB32 COUPLING SET* HW 4.0*
* Optional, should be ordered separately

665
