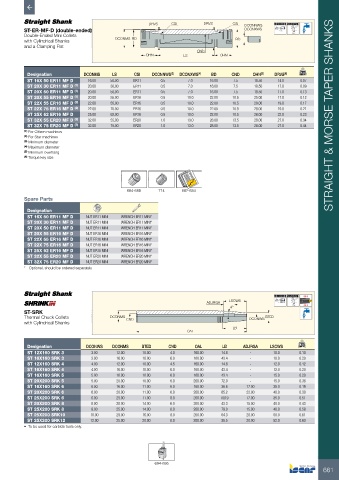

Page 663 - ISCAR(MILLINGCATALOG 38_2021)

DRVS CSI DRVS CSI DCONNWS A 0.005 A 58-60 HRc
ST-ER-MF-D (double-ended) DCONXWS
Double-Ended Mini Collets
with Cylindrical Shanks DCONMS BD BD
and a Clamping Flat
CND
OHN LS OHN

Designation DCONMS LS CSI DCONNWS (3) DCONXWS (4) BD CND OHN (5) DRVS (6) kg
ST 16X 50 ER11 MF D 16.00 50.00 ER11 0.5 7.0 16.00 7.5 18.50 14.0 0.07
ST 20X 30 ER11 MF D (1) 20.00 30.00 ER11 0.5 7.0 16.00 7.5 18.50 17.0 0.09
ST 20X 50 ER11 MF D (1) 20.00 50.00 ER11 0.5 7.0 16.00 7.5 18.50 17.0 0.13
ST 20X 55 ER16 MF D (1) 20.00 55.00 ER16 0.5 10.0 22.00 10.5 25.00 17.0 0.12
ST 22X 55 ER16 MF D (2) 22.00 55.00 ER16 0.5 10.0 22.00 10.5 28.00 19.0 0.17
ST 22X 75 ER16 MF D (2) 22.00 75.00 ER16 0.5 10.0 22.00 10.5 28.00 19.0 0.21
ST 25X 62 ER16 MF D 25.00 62.00 ER16 0.5 10.0 22.00 10.5 28.00 22.0 0.23 STRAIGHT & MORSE TAPER SHANKS
ST 32X 55 ER20 MF D (2) 32.00 55.00 ER20 1.0 13.0 28.00 13.5 28.00 27.0 0.34
ST 32X 75 ER20 MF D (2) 32.00 75.00 ER20 1.0 13.0 28.00 13.5 28.00 27.0 0.44
(1) For Citizen machines
(2) For Star machines
(3) Minimum diameter
(4) Maximum diameter
(5) Minimum overhang
(6) Torque key size

684-688 714 682-684

Spare Parts

Designation
ST 16X 50 ER11 MF D NUT ER11 MINI WRENCH ER11 MINI*
ST 20X 30 ER11 MF D NUT ER11 MINI WRENCH ER11 MINI*
ST 20X 50 ER11 MF D NUT ER11 MINI WRENCH ER11 MINI*
ST 20X 55 ER16 MF D NUT ER16 MINI WRENCH ER16 MINI*
ST 22X 55 ER16 MF D NUT ER16 MINI WRENCH ER16 MINI*
ST 22X 75 ER16 MF D NUT ER16 MINI WRENCH ER16 MINI*
ST 25X 62 ER16 MF D NUT ER16 MINI WRENCH ER16 MINI*
ST 32X 55 ER20 MF D NUT ER20 MINI WRENCH ER20 MINI*
ST 32X 75 ER20 MF D NUT ER20 MINI WRENCH ER20 MINI*
* Optional, should be ordered separately

A 0.003 A 58-60 HRc
ADJRGA LSCWS
4°
ST-SRK
Thermal Chuck Collets DCONMS CND DCONWS BTED
with Cylindrical Shanks
LB
OAL

Designation DCONWS DCONMS BTED CND OAL LB ADJRGA LSCWS kg
ST 12X160 SRK 3 3.00 12.00 10.00 4.0 160.00 14.8 - 10.0 0.10
ST 16X160 SRK 3 3.00 16.00 10.00 6.0 160.00 43.4 - 10.0 0.20
ST 12X160 SRK 4 4.00 12.00 10.00 4.5 160.00 14.8 - 12.0 0.12
ST 16X160 SRK 4 4.00 16.00 10.00 6.0 160.00 43.4 - 12.0 0.20
ST 16X160 SRK 5 5.00 16.00 10.00 6.0 160.00 43.4 - 15.0 0.20
ST 20X200 SRK 5 5.00 20.00 10.00 6.0 200.00 72.0 - 15.0 0.38
ST 16X160 SRK 6 6.00 16.00 11.00 6.0 160.00 36.6 17.00 35.0 0.19
ST 20X200 SRK 6 6.00 20.00 11.00 6.0 200.00 65.2 22.00 40.0 0.30
ST 25X200 SRK 6 6.00 25.00 11.00 8.0 200.00 100.9 17.00 35.0 0.51
ST 20X200 SRK 8 8.00 20.00 14.00 6.0 200.00 43.3 15.00 40.0 0.43
ST 25X200 SRK 8 8.00 25.00 14.00 8.0 200.00 79.0 15.00 40.0 0.58
ST 25X200 SRK10 10.00 25.00 16.00 8.0 200.00 64.3 20.00 50.0 0.61
ST 25X200 SRK12 12.00 25.00 20.00 8.0 200.00 35.5 20.00 52.0 0.63
• To be used for carbide tools only.

694-695
