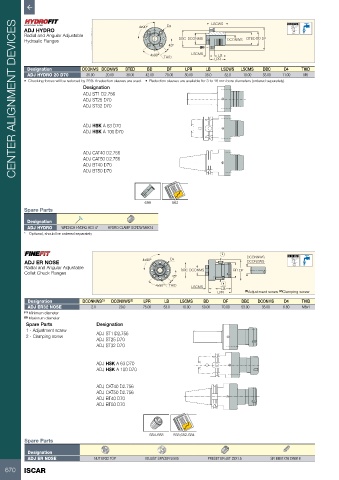

CENTER ALIGNMENT DEVICES
4x90º D4 LSCWS 58-60 HRc
ADJ HYDRO
Radial and Angular Adjustable BD DF
Hydraulic Flanges DBC DCONMS DCONWS BTED
45º
4x90º THID LSCMS LB
LPR
Designation DCONMS DCONWS BTED BD DF LPR LB LSCWS LSCMS DBC D4 THID
ADJ HYDRO 20 D70 35.00 20.00 38.00 42.00 70.00 50.00 35.0 52.0 10.00 53.00 11.00 M6
• Chucking forces will be reduced by 25% if reduction sleeves are used. • Reduction sleeves are available for 3 to 16 mm bore diameters (ordered separately).
Designation
ADJ ST1 D2.756
ADJ ST25 D70
ADJ ST32 D70

ADJ HSK A 63 D70
ADJ HSK A 100 D70

ADJ CAT40 D2.756
ADJ CAT50 D2.756
ADJ BT40 D70
ADJ BT50 D70

699 562

Spare Parts
Designation
ADJ HYDRO WRENCH HYDRO HEX 4* HYDRO CLAMP SCREW M8X14
* Optional, should be ordered separately

1 DCONNWS 58-60 HRc

ADJ ER NOSE 4x90º D4 DCONXWS
Radial and Angular Adjustable DBC DCONMS BD DF
Collet Chuck Flanges
45º
2
4x90º THID LSCMS LB
LPR (1) Adjustment screw (2) Clamping screw
Designation DCONNWS (1) DCONXWS (2) LPR LB LSCMS BD DF DBC DCONMS D4 THID
ADJ ER32 NOSE 2.0 20.0 75.00 53.0 10.00 50.00 70.00 53.00 35.00 6.60 M8x1
(1) Minimum diameter
(2) Maximum diameter
Spare Parts Designation
1 - Adjustment screw ADJ ST1 D2.756
2 - Clamping screw
ADJ ST25 D70
ADJ ST32 D70

ADJ HSK A 63 D70
ADJ HSK A 100 D70

ADJ CAT40 D2.756
ADJ CAT50 D2.756
ADJ BT40 D70
ADJ BT50 D70

684-688 558,682-684
Spare Parts
Designation
ADJ ER NOSE NUT ER32 TOP ADJUST SPACER 9.5X5 PRESET ER-JET 22X1.5 SR M8X1X16 DIN916
