ø3 typ.x2 (1)

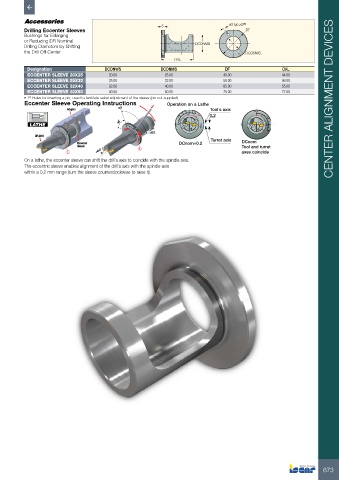

Drilling Eccenter Sleeves 5 DF
Bushings for Enlarging
or Reducing DR Nominal
Drilling Diameters by Shifting DCONMS
the Drill Off-Center DCONWS
OAL
Designation DCONWS DCONMS DF OAL
ECCENTER SLEEVE 20X25 20.00 25.00 40.00 44.00
ECCENTER SLEEVE 25X32 25.00 32.00 50.00 46.00
ECCENTER SLEEVE 32X40 32.00 40.00 65.00 55.00
ECCENTER SLEEVE 40X50 40.00 50.00 75.00 77.00
• (1) Holes for inserting a pin, used to facilitate radial adjustment of the sleeve (pin not supplied) CENTER ALIGNMENT DEVICES
Eccenter Sleeve Operating Instructions Operation on a Lathe
Adapter 0.0 Tool’s axis
+12 +8 +4 +8 0 -4 -8 L M 0.2 +0.4 0 +0.2
90 +4
LATHE +0.4 +16 0 +0.2 0
0 +0.2 X.001”
+0.2 L -0.2 M
DR-Drill +0.2 0
Turret axis
L
Eccenter DCnom+0.2 DCnom
-0.2 M
Sleeve L Tool and turret
L
L +0.2 0 axes coincide
On a lathe, the eccenter sleeve can shift the drill’s axis to coincide with the spindle axis.
The eccentric sleeve enables alignment of the drill’s axis with the spindle axis
within a 0.2 mm range (turn the sleeve counterclockwise to raise it).
