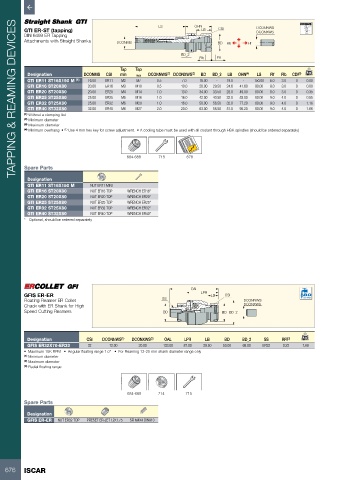

Page 678 - ISCAR(MILLINGCATALOG 38_2021)

58-60 HRc
TAPPING & REAMING DEVICES
GTI ER-ST (tapping) LS OHN LB CSI DCONNWS
DCONXWS
DIN 6499 ER Tapping
Attachments with Straight Shanks DCONMS BD Flb Flf

BD_2
Flb Flf
Tap Tap
Designation DCONMS CSI min max DCONNWS (2) DCONXWS (3) BD BD_2 LB OHN (4) LS Flf Flb CDI (5) kg
GTI ER11 ST16X150 M (1) 16.00 ER11 M2 M7 0.5 7.0 16.00 - 19.0 - 150.00 6.0 3.0 0 0.00
GTI ER16 ST20X80 20.00 ER16 M3 M10 0.5 10.0 28.00 29.50 24.6 41.60 80.00 8.0 3.0 0 0.00
GTI ER20 ST20X80 20.00 ER20 M4 M14 1.0 13.0 34.00 33.50 28.0 49.00 80.00 8.0 3.0 0 0.35
GTI ER25 ST25X80 25.00 ER25 M5 M16 1.0 16.0 42.00 40.50 32.0 53.00 80.00 9.0 4.0 0 0.55
GTI ER32 ST25X80 25.00 ER32 M6 M20 1.0 16.0 50.00 56.50 32.0 77.20 80.00 9.0 4.0 0 1.16
GTI ER40 ST32X80 32.00 ER40 M6 M27 2.0 20.0 63.00 56.50 51.0 95.20 80.00 9.0 4.0 0 1.66
(1) Without a clamping flat
(2) Minimum diameter
(3) Maximum diameter
(4) Minimum overhang • (1) Use 4 mm hex key for screw adjustment. • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)

684-688 715 678

Spare Parts

Designation
GTI ER11 ST16X150 M NUT ER11 MINI
GTI ER16 ST20X80 NUT ER16 TOP WRENCH ER16*
GTI ER20 ST20X80 NUT ER20 TOP WRENCH ER20*
GTI ER25 ST25X80 NUT ER25 TOP WRENCH ER25*
GTI ER32 ST25X80 NUT ER32 TOP WRENCH ER32*
GTI ER40 ST32X80 NUT ER40 TOP WRENCH ER40*
* Optional, should be ordered separately

OAL
GFIS ER-ER LPR LB CSI 80
Floating Reamer ER Collet SS DCONNWS Bar Max
Chuck with ER Shank for High DCONXWS
Speed Cutting Reamers BD BD BD_2

Designation CSI DCONNWS (1) DCONXWS (2) OAL LPR LB BD BD_2 SS RFl (3) kg
GFIS ER32X70-ER32 32 12.00 20.00 133.00 87.00 29.50 50.00 68.00 ER32 0.22 1.69
• Maximum 10K RPM • Angular floating range 1.0° • For Reaming 12-20 mm shank diameter range only
(1) Minimum diameter
(2) Maximum diameter
(3) Radial floating range

684-688 714 715

Spare Parts
Designation
GFIS ER-ER NUT ER32 TOP PRESET ER-JET 12X1.75 SR M4X4 DIN913

676 ISCAR
