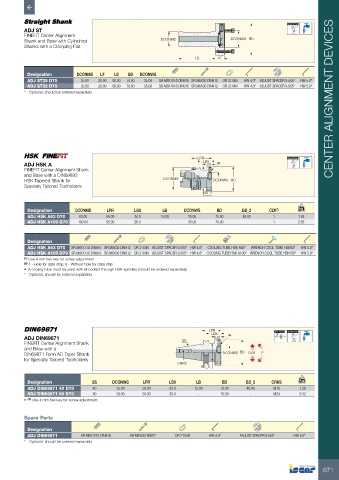

Page 673 - ISCAR(MILLINGCATALOG 38_2021)

58-60 HRc
ADJ ST
FINEFIT Center Alignment
Shank and Base with Cylindrical DCONMS DCONWS BD
Shanks with a Clamping Flat
LS LF

Designation DCONMS LF LS BD DCONWS
ADJ ST25 D70 25.00 20.00 80.00 70.00 35.00 SR M8X1X16 DIN916 SR M6X30 DIN912 OR 21X4N HW 4.0* ADJUST SPACER 9.5X5* HW 5.0*
ADJ ST32 D70 32.00 20.00 80.00 70.00 35.00 SR M8X1X16 DIN916 SR M6X30 DIN912 OR 21X4N HW 4.0* ADJUST SPACER 9.5X5* HW 5.0*
* Optional, should be ordered separately
CENTER ALIGNMENT DEVICES

LPR 58-60 HRc
ADJ HSK A LBX LB (1)
FINEFIT Center Alignment Shank
and Base with a DIN69893
HSK Tapered Shank for DCONMS DCONWS BD
Specially Tailored Toolholders
BD_2

Designation DCONMS LPR LBX LB DCONWS BD BD_2 CDI (2) kg
ADJ HSK A63 D70 63.00 60.00 34.0 18.00 35.00 70.00 46.00 1 1.24
ADJ HSK A100 D70 100.00 55.00 26.0 - 35.00 70.00 - 1 2.63

Designation
ADJ HSK A63 D70 SR M8X1X16 DIN916 SR M6X30 DIN912 OR 21X4N ADJUST SPACER 9.5X5* HW 4.0* COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63* HW 5.0*
ADJ HSK A100 D70 SR M8X1X16 DIN916 SR M6X30 DIN912 OR 21X4N ADJUST SPACER 9.5X5* HW 4.0* COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100* HW 5.0*
(1) Use 4 mm hex key for screw adjustment.
(2) 1 - Hole for data chip, 0 - Without hole for data chip
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
* Optional, should be ordered separately

LPR AT3 Taper 58-60 HRc
ADJ DIN69871 SS LBX LB (1)
FINEFIT Center Alignment Shank
and Base with a
DIN69871 Form AD Taper Shank DCONWS BD 0.05 1°
for Specially Tailored Toolholders
CRKS
BD_2

Designation SS DCONWS LPR LBX LB BD BD_2 CRKS kg
ADJ DIN69871 40 D70 40 35.00 50.00 30.9 15.00 70.00 46.00 M16 1.28
ADJ DIN69871 50 D70 50 35.00 50.00 30.9 - 70.00 - M24 3.32
• (1) Use 4 mm hex key for screw adjustment.

Spare Parts

Designation
ADJ DIN69871 SR M8X1X16 DIN916 SR M6X30 DIN912 OR 21X4N HW 4.0* ADJUST SPACER 9.5X5* HW 5.0*
* Optional, should be ordered separately

671
