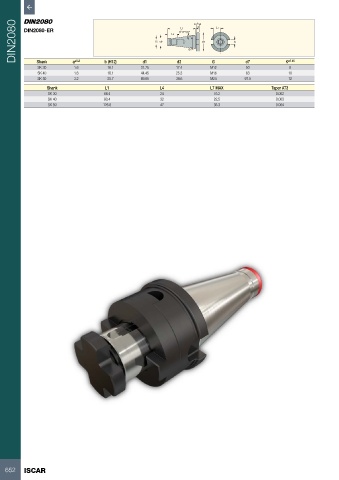

P. 654
DIN2080 DIN2080-ER G d2 L4 8˚17'50" d1 k a d7 L7 b
L1
Shank a ±0.2 b (H12) d1 d2 G d7 K ±0.15
SK 30 1.6 16.1 31.75 17.4 M12 50 8
SK 40 1.6 16.1 44.45 25.3 M16 63 10
SK 50 3.2 25.7 69.85 39.6 M24 97.5 12
Shank L1 L4 L7 MAX Taper AT3
SK 30 68.4 24 16.2 0.002
SK 40 93.4 32 22.5 0.003
SK 50 126.8 47 35.3 0.004
