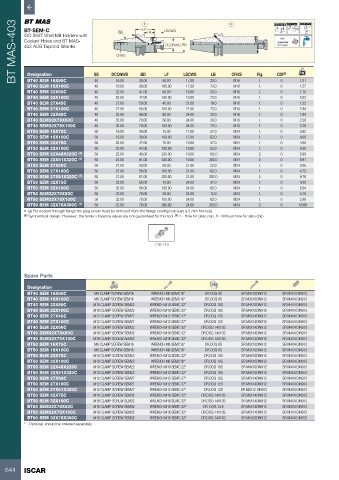

P. 646
BT MAS-403 BT-SEM-C CRKS (a) LF LB LSCWS BD 2 A 20,000 RPM 58-60 HRc
A AT3 Taper
1
0.005
SS
ISO 3937 Shell Mill Holders with
G2.5
Coolant Holes and BT MAS-
DCONWS
403 ADB Tapered Shanks
U<1.0 gmm
LF
LB
Designation
BD
BT40 SEM 16X60C
1.21
40
1.
60.00
16.00
M16
17.00
BT40 SEM 16X100C SS DCONWS 38.00 100.00 LSCWS 33.0 CRKS Fig. CDI 0 0 (2) kg
M16
40
1.57
1.
17.00
16.00
38.00
73.0
BT40 SEM 22X60C 40 22.00 47.00 60.00 19.00 33.0 M16 1. 0 1.10
BT40 SEM 22X100C 40 22.00 47.00 100.00 19.00 73.0 M16 1. 0 2.03
BT40 SEM 27X45C 40 27.00 58.00 45.00 21.00 18.0 M16 1. 0 1.32
BT40 SEM 27X100C 40 27.00 58.00 100.00 21.00 73.0 M16 1. 0 2.44
BT40 SEM 32X60C 40 32.00 66.00 60.00 24.00 33.0 M16 1. 0 1.84
BT40 SEM32X78X60C 40 32.00 78.00 60.00 24.00 33.0 M16 1. 0 2.20
BT40 SEM32X78X100C 40 32.00 78.00 100.00 24.00 73.0 M16 1. 0 3.36
BT50 SEM 16X75C 50 16.00 38.00 75.00 17.00 37.0 M24 1. 0 3.82
BT50 SEM 16X100C 50 16.00 38.00 100.00 17.00 62.0 M24 1. 0 4.00
BT50 SEM 22X75C 50 22.00 47.00 75.00 19.00 37.0 M24 1. 0 4.00
BT50 SEM 22X100C 50 22.00 47.00 100.00 19.00 62.0 M24 1. 0 4.30
BT50 SEM 22X48X220C (1) 50 22.00 48.00 220.00 19.00 182.0 M24 2. 0 5.98
BT50 SEM 22X61X320C (1) 50 22.00 61.00 320.00 19.00 282.0 M24 2. 0 9.91
BT50 SEM 27X60C 50 27.00 58.00 60.00 21.00 22.0 M24 1. 0 3.96
BT50 SEM 27X100C 50 27.00 58.00 100.00 21.00 62.0 M24 1. 0 4.72
BT50 SEM 27X61X320C (1) 50 27.00 61.00 320.00 21.00 282.0 M24 2. 0 9.78
BT50 SEM 32X75C 50 32.00 66.00 75.00 24.00 37.0 M24 1. 0 4.50
BT50 SEM 32X100C 50 32.00 66.00 100.00 24.00 62.0 M24 1. 0 5.04
BT50 SEM32X78X50C 50 32.00 78.00 50.00 24.00 12.0 M24 1. 0 4.16
BT50 SEM32X78X100C 50 32.00 78.00 100.00 24.00 62.0 M24 1. 0 5.99
BT50 SEM 32X78X390C (1) 50 32.00 78.00 390.00 24.00 352.0 M24 2. 0 16.66
• (a) For coolant through flange the plug screw must be removed from the flange cooling hole (use a 2 mm hex key)
(1) Symmetrical design. However, the family's balance values are not guaranteed for this tool (1) 1 - Hole for data chip, 0 - Without hole for data chip
712-713
Spare Parts
Designation
BT40 SEM 16X60C M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912 SR M4X4 DIN913
BT40 SEM 16X100C M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912 SR M4X4 DIN913
BT40 SEM 22X60C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913
BT40 SEM 22X100C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913
BT40 SEM 27X45C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X14DIN912 SR M4X4 DIN913
BT40 SEM 27X100C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X14DIN912 SR M4X4 DIN913
BT40 SEM 32X60C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913
BT40 SEM32X78X60C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913
BT40 SEM32X78X100C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913
BT50 SEM 16X75C M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912 SR M4X4 DIN913
BT50 SEM 16X100C M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* DR.DOG 8S SR M3X10DIN912 SR M4X4 DIN913
BT50 SEM 22X75C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913
BT50 SEM 22X100C M10 CLAMP SCREW SEM22 WRENCH M8 SEMC16* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913
BT50 SEM 22X48X220C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913
BT50 SEM 22X61X320C M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* DR.DOG 10S SR M4X10DIN912 SR M4X4 DIN913
BT50 SEM 27X60C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X14DIN912 SR M4X4 DIN913
BT50 SEM 27X100C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X14DIN912 SR M4X4 DIN913
BT50 SEM 27X61X320C M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* DR.DOG 12S SR M5X12 DIN912 SR M4X4 DIN913
BT50 SEM 32X75C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913
BT50 SEM 32X100C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913
BT50 SEM32X78X50C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR. DOG 14 E SR M5X14DIN912 SR M4X4 DIN913
BT50 SEM32X78X100C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X13S SR M5X14DIN912 SR M4X4 DIN913
BT50 SEM 32X78X390C M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* DR.DOG 14X16S SR M5X20DIN912 SR M4X4 DIN913
* Optional, should be ordered separately
