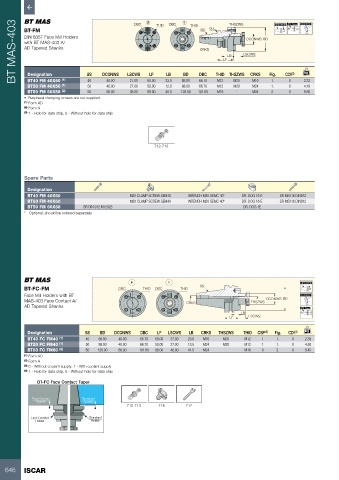

Page 648 - ISCAR(MILLINGCATALOG 38_2021)

BT MAS-403 BT-FM DBC 2 THID DBC 1 THID CRKS G.L. LF LB THSZWS LSCWS BD A 0.005 A AT3 Taper 58-60 HRc
SS
DIN 6357 Face Mill Holders
DCONWS
with BT MAS-403 A/
AD Tapered Shanks

LB
BD
LF
Designation
BT40 FM 40X60
M12
M16
40
40.00
2.33
27.00
66.70
1.
M20
0
BT50 FM 40X50 (1) SS DCONWS LSCWS 60.00 33.0 88.00 DBC THID THSZWS CRKS Fig. CDI (3) kg
(1)
M24
4.19
40.00
88.00
66.70
0
1.
12.0
M20
50
M12
50.00
27.00
BT50 FM 60X88 (2) 50 60.00 38.00 88.00 40.0 128.00 101.60 M16 - M24 2. 0 8.60
• Peripheral clamping screws are not supplied.
(1) Form AD
(2) Form A
(3) 1 - Hole for data chip, 0 - Without hole for data chip
712-713

Spare Parts
Designation
BT40 FM 40X60 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* DR. DOG 16 E SR M5X16 DIN912
BT50 FM 40X50 M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* DR. DOG 16 E SR M5X16 DIN912
BT50 FM 60X88 SR DIN 912 M12X25 DR. DOG 1E
* Optional, should be ordered separately
2 1 A 0.005 A

BT-FC-FM DBC THID DBC THID SS
Face Mill Holders with BT 58-60 HRc
MAS-403 Face Contact A/ CRKS THSZWS DCONWS BD
AD Tapered Shanks AT3 Taper
LB
LF LSCWS

Designation SS BD DCONWS DBC LF LSCWS LB CRKS THSZWS THID CSP (3) Fig. CDI (4) kg
BT40 FC FM40 (1) 40 88.00 40.00 66.70 60.00 27.00 23.0 M16 M20 M12 1 1. 0 2.39
BT50 FC FM40 (1) 50 88.00 40.00 66.70 50.00 27.00 13.5 M24 M20 M12 1 1. 0 4.50
BT50 FC FM60 (2) 50 128.00 60.00 101.60 88.00 40.00 41.5 M24 - M16 0 2. 0 9.45
(1) Form AD
(2) Form A
(3) 0 - Without coolant supply, 1 - With coolant supply
(4) 1 - Hole for data chip, 0 - Without hole for data chip
BT-FC Face Contact Taper

Face Contact Standard
Spindle Spindle
712-713 716 717
Face Contact Standard
Holder Holder
