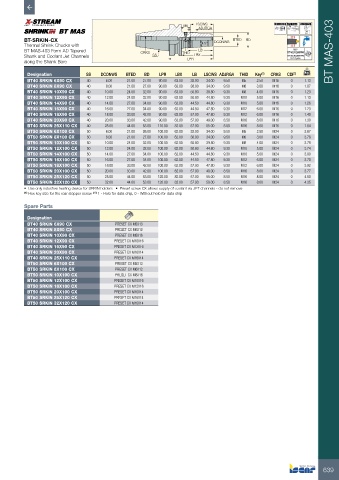

Page 641 - ISCAR(MILLINGCATALOG 38_2021)

LSCWS
M6 ADJRGA A 0.003 A AT3 Taper 50-52 HRc

BT-SRKIN-CX DCONWS BTED BD
Thermal Shrink Chucks with 4.5°
G2.5
BT MAS-403 Form AD Tapered CRKS THID LB BT 40=25,000RPM BT MAS-403
Shank and Coolant Jet Channels SS LPR LBX BT 50=20,000 RPM
U<1.0 gmm
along the Shank Bore
Designation SS DCONWS BTED BD LPR LBX LB LSCWS ADJRGA THID Key (1) CRKS CDI (2) kg
BT40 SRKIN 6X90 CX 40 6.00 21.00 27.00 90.00 63.00 38.00 34.00 9.50 M5 2.50 M16 0 1.13
BT40 SRKIN 8X90 CX 40 8.00 21.00 27.00 90.00 63.00 38.00 34.00 9.50 M6 3.00 M16 0 1.07
BT40 SRKIN 10X90 CX 40 10.00 24.00 32.00 90.00 63.00 50.80 39.80 9.30 M8 4.00 M16 0 1.23
BT40 SRKIN 12X90 CX 40 12.00 24.00 32.00 90.00 63.00 50.80 44.80 9.30 M10 5.00 M16 0 1.13
BT40 SRKIN 14X90 CX 40 14.00 27.00 34.00 90.00 63.00 44.50 44.80 9.30 M10 5.00 M16 0 1.26
BT40 SRKIN 16X90 CX 40 16.00 27.00 34.00 90.00 63.00 44.50 47.80 9.30 M12 6.00 M16 0 1.23
BT40 SRKIN 18X90 CX 40 18.00 33.00 42.00 90.00 63.00 57.00 47.80 9.30 M12 6.00 M16 0 1.40
BT40 SRKIN 20X90 CX 40 20.00 33.00 42.00 90.00 63.00 57.00 49.00 8.50 M16 8.00 M16 0 1.30
BT40 SRKIN 25X110 CX 40 25.00 44.00 53.00 110.00 83.00 57.00 55.00 8.50 M16 8.00 M16 0 1.84
BT50 SRKIN 6X100 CX 50 6.00 21.00 26.00 100.00 62.00 32.00 34.00 9.50 M5 2.50 M24 0 3.67
BT50 SRKIN 8X100 CX 50 8.00 21.00 27.00 100.00 62.00 38.00 34.00 9.50 M6 3.00 M24 0 3.78
BT50 SRKIN 10X100 CX 50 10.00 24.00 32.00 100.00 62.00 50.80 39.80 9.30 M8 4.00 M24 0 3.78
BT50 SRKIN 12X100 CX 50 12.00 24.00 32.00 100.00 62.00 50.80 44.80 9.30 M10 5.00 M24 0 3.74
BT50 SRKIN 14X100 CX 50 14.00 27.00 34.00 100.00 62.00 44.50 44.80 9.30 M10 5.00 M24 0 3.80
BT50 SRKIN 16X100 CX 50 16.00 27.00 34.00 100.00 62.00 44.50 47.80 9.30 M12 6.00 M24 0 3.70
BT50 SRKIN 18X100 CX 50 18.00 33.00 42.00 100.00 62.00 57.00 47.80 9.30 M12 6.00 M24 0 3.92
BT50 SRKIN 20X100 CX 50 20.00 33.00 42.00 100.00 62.00 57.00 49.00 8.50 M16 8.00 M24 0 3.77
BT50 SRKIN 25X120 CX 50 25.00 44.00 53.00 120.00 82.00 57.00 55.00 8.50 M16 8.00 M24 0 4.50
BT50 SRKIN 32X120 CX 50 32.00 44.00 53.00 120.00 82.00 57.00 59.00 8.50 M16 8.00 M24 0 4.35
• Use only inductive heating device for SRKIN holders • Preset screw CX allows supply of coolant via JET channels - do not remove
(1) Hex key size for the rear stopper screw (1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
BT40 SRKIN 6X90 CX PRESET CX M5X13
BT40 SRKIN 8X90 CX PRESET CX M6X12
BT40 SRKIN 10X90 CX PRESET CX M8X16
BT40 SRKIN 12X90 CX PRESET CX M10X16
BT40 SRKIN 16X90 CX PRESET CX M12X16
BT40 SRKIN 20X90 CX PRESET CX M16X14
BT40 SRKIN 25X110 CX PRESET CX M16X14
BT50 SRKIN 6X100 CX PRESET CX M5X13
BT50 SRKIN 8X100 CX PRESET CX M6X12
BT50 SRKIN 10X100 CX PRESET CX M8X16
BT50 SRKIN 12X100 CX PRESET CX M10X16
BT50 SRKIN 16X100 CX PRESET CX M12X16
BT50 SRKIN 20X100 CX PRESET CX M16X14
BT50 SRKIN 25X120 CX PRESET CX M16X14
BT50 SRKIN 32X120 CX PRESET CX M16X14

639
