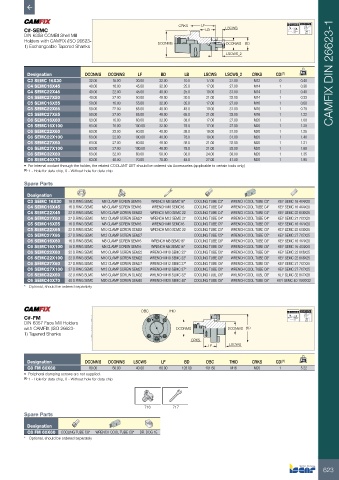

Page 625 - ISCAR(MILLINGCATALOG 38_2021)
P. 625
CRKS LF A 0.005 A 58-60 HRc
C#-SEMC LB LSCWS
DIN 6358 COMBI Shell Mill
Holders with CAMFIX (ISO 26623- DCONMS DCONWS BD
1) Exchangeable Tapered Shanks
LSCWS_2
Designation DCONMS DCONWS LF BD LB LSCWS LSCWS_2 CRKS CDI (1) kg CAMFIX DIN 26623-1
C3 SEMC 16X30 32.00 16.00 30.00 32.00 10.0 17.00 27.00 M12 0 0.40
C4 SEMC16X45 40.00 16.00 45.00 32.00 25.0 17.00 27.00 M14 1 0.36
C4 SEMC22X45 40.00 22.00 45.00 40.00 25.0 19.00 31.00 M14 1 0.40
C4 SEMC27X50 40.00 27.00 50.00 48.00 30.0 21.00 33.00 M14 1 0.33
C5 SEMC16X55 50.00 16.00 55.00 32.00 35.0 17.00 27.00 M16 1 0.60
C5 SEMC22X65 50.00 22.00 65.00 40.00 45.0 19.00 31.00 M16 1 0.79
C5 SEMC27X85 50.00 27.00 85.00 48.00 65.0 21.00 33.00 M16 1 1.22
C6 SEMC16X60 63.00 16.00 60.00 32.00 38.0 17.00 27.00 M20 1 1.08
C6 SEMC16X100 63.00 16.00 100.00 32.00 78.0 17.00 27.00 M20 1 1.28
C6 SEMC22X60 63.00 22.00 60.00 40.00 38.0 19.00 31.00 M20 1 1.25
C6 SEMC22X100 63.00 22.00 100.00 40.00 78.0 19.00 31.00 M20 1 1.40
C6 SEMC27X60 63.00 27.00 60.00 48.00 38.0 21.00 33.00 M20 1 1.21
C6 SEMC27X100 63.00 27.00 100.00 48.00 78.0 21.00 33.00 M20 1 1.69
C6 SEMC32X60 63.00 32.00 60.00 58.00 38.0 24.00 38.00 M20 1 1.35
C6 SEMC40X70 63.00 40.00 70.00 70.00 48.0 27.00 41.00 M20 1 1.95
• For internal coolant through the holder, the related COOLANT SET should be ordered via Accessories (applicable to certain tools only)
(1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
Designation
C3 SEMC 16X30 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* COOLING TUBE C3* WRENCH COOL TUBE C3* KEY SEMC 16 4X4X20
C4 SEMC16X45 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 COOLING TUBE C4* WRENCH COOL TUBE C4* KEY SEMC 16 4X4X20
C4 SEMC22X45 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 COOLING TUBE C4* WRENCH COOL TUBE C4* KEY SEMC 22 6X6X25
C4 SEMC27X50 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 COOLING TUBE C4* WRENCH COOL TUBE C4* KEY SEMC 27 7X7X25
C5 SEMC16X55 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 COOLING TUBE C5* WRENCH COOL TUBE C5* KEY SEMC 16 4X4X20
C5 SEMC22X65 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 COOLING TUBE C5* WRENCH COOL TUBE C5* KEY SEMC 22 6X6X25
C5 SEMC27X85 27 D.RING SEMC M12 CLAMP SCREW SEM27 COOLING TUBE C5* WRENCH COOL TUBE C5* KEY SEMC 27 7X7X25
C6 SEMC16X60 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* COOLING TUBE C6* WRENCH COOL TUBE C6* KEY SEMC 16 4X4X20
C6 SEMC16X100 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16* COOLING TUBE C6* WRENCH COOL TUBE C6* KEY SEMC 16 4X4X20
C6 SEMC22X60 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* COOLING TUBE C6* WRENCH COOL TUBE C6* KEY SEMC 22 6X6X25
C6 SEMC22X100 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22* COOLING TUBE C6* WRENCH COOL TUBE C6* KEY SEMC 22 6X6X25
C6 SEMC27X60 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* COOLING TUBE C6* WRENCH COOL TUBE C6* KEY SEMC 27 7X7X25
C6 SEMC27X100 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27* COOLING TUBE C6* WRENCH COOL TUBE C6* KEY SEMC 27 7X7X25
C6 SEMC32X60 32 D.RING SEMC M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32* COOLING TUBE C6* WRENCH COOL TUBE C6* KEY SEMC 32 8X7X28
C6 SEMC40X70 40 D.RING SEMC M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40* COOLING TUBE C6* WRENCH COOL TUBE C6* KEY SEMC 40 10X8X32
* Optional, should be ordered separately
DBC THID A 0.005 A 58-60 HRc
C#-FM
DIN 6357 Face Mill Holders
with CAMFIX (ISO 26623- DCONMS DCONWS BD
1) Tapered Shanks
CRKS
LF LSCWS
Designation DCONMS DCONWS LSCWS LF BD DBC THID CRKS CDI (1) kg
C8 FM 60X60 80.00 60.00 40.00 60.00 128.00 101.60 M16 M20 1 5.22
• Peripheral clamping screws are not supplied.
(1) 1 - Hole for data chip, 0 - Without hole for data chip
716 717
Spare Parts
Designation
C8 FM 60X60 COOLING TUBE C8* WRENCH COOL TUBE C8* DR. DOG 1E
* Optional, should be ordered separately
623
