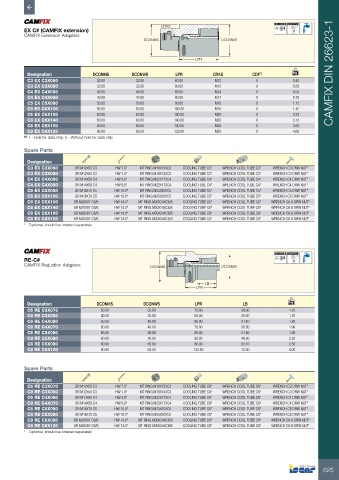

Page 627 - ISCAR(MILLINGCATALOG 38_2021)

A 0.003 A 58-60 HRc
EX C# (CAMFIX extension) CRKS
CAMFIX Extension Adapters
DCONMS DCONWS

LPR

Designation DCONMS DCONWS LPR CRKS CDI (1) kg CAMFIX DIN 26623-1
C3 EX C3X060 32.00 32.00 60.00 M12 0 0.40
C3 EX C3X080 32.00 32.00 80.00 M12 0 0.50
C4 EX C4X060 40.00 40.00 60.00 M14 0 0.50
C4 EX C4X080 40.00 40.00 80.00 M14 0 0.70
C5 EX C5X080 50.00 50.00 80.00 M16 0 1.13
C5 EX C5X100 50.00 50.00 100.00 M16 0 1.42
C6 EX C6X100 63.00 63.00 100.00 M20 0 2.23
C6 EX C6X140 63.00 63.00 140.00 M20 0 3.13
C8 EX C8X100 80.00 80.00 100.00 M20 0 3.65
C8 EX C8X125 80.00 80.00 125.00 M20 0 4.60
(1) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
C3 EX C3X060 SR M12X50 C3 HW 7.0* MT RING M18X15XC3 COOLING TUBE C3* WRENCH COOL TUBE C3* WRENCH C3 DRW NUT*
C3 EX C3X080 SR M12X50 C3 HW 7.0* MT RING M18X15XC3 COOLING TUBE C3* WRENCH COOL TUBE C3* WRENCH C3 DRW NUT*
C4 EX C4X060 SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C4* WRENCH COOL TUBE C4* WRENCH C4 DRW NUT*
C4 EX C4X080 SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C4* WRENCH COOL TUBE C4* WRENCH C4 DRW NUT*
C5 EX C5X080 SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C5* WRENCH COOL TUBE C5* WRENCH C5 DRW NUT*
C5 EX C5X100 SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C5* WRENCH COOL TUBE C5* WRENCH C5 DRW NUT*
C6 EX C6X100 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C6-8 DRW NUT*
C6 EX C6X140 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C6-8 DRW NUT*
C8 EX C8X100 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT*
C8 EX C8X125 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT*
* Optional, should be ordered separately

A 0.003 A 58-60 HRc
RE-C#
CAMFIX Reduction Adapters DCONMS DCONWS

LB
LPR

Designation DCONMS DCONWS LPR LB kg
C6 RE C3X070 63.00 32.00 70.00 39.00 1.10
C8 RE C3X060 80.00 32.00 60.00 29.30 1.70
C6 RE C4X080 63.00 40.00 80.00 51.40 1.20
C8 RE C4X070 80.00 40.00 70.00 36.50 1.90
C6 RE C5X080 63.00 50.00 80.00 51.50 1.50
C8 RE C5X080 80.00 50.00 80.00 49.30 2.20
C8 RE C6X080 80.00 63.00 80.00 53.10 2.50
C8 RE C6X120 80.00 63.00 120.00 12.00 4.00

Spare Parts

Designation
C6 RE C3X070 SR M12X50 C3 HW 7.0* MT RING M18X15XC3 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C3 DRW NUT*
C8 RE C3X060 SR M12X50 C3 HW 7.0* MT RING M18X15XC3 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C3 DRW NUT*
C6 RE C4X080 SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C4 DRW NUT*
C8 RE C4X070 SR M14X58 C4 HW 8.0* MT RING M22X17XC4 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C4 DRW NUT*
C6 RE C5X080 SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C6* WRENCH COOL TUBE C6* WRENCH C5 DRW NUT*
C8 RE C5X080 SR M16X70 C5 HW 10.0* MT RING M25X20XC5 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C5 DRW NUT*
C8 RE C6X080 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT*
C8 RE C6X120 SR M20X87 C6/8 HW 14.0* MT RING M30X24XC6/8 COOLING TUBE C8* WRENCH COOL TUBE C8* WRENCH C6-8 DRW NUT*
* Optional, should be ordered separately
