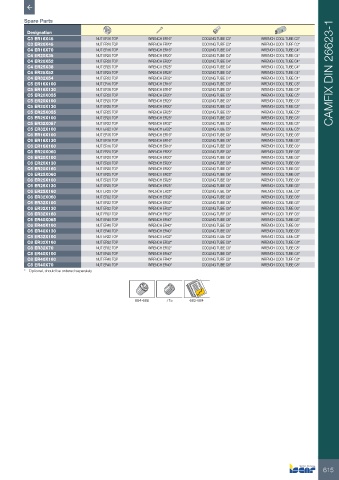

Page 617 - ISCAR(MILLINGCATALOG 38_2021)

Spare Parts
Designation
C3 ER16X45 NUT ER16 TOP WRENCH ER16* COOLING TUBE C3* WRENCH COOL TUBE C3*
C3 ER20X45 NUT ER20 TOP WRENCH ER20* COOLING TUBE C3* WRENCH COOL TUBE C3*
C4 ER16X70 NUT ER16 TOP WRENCH ER16* COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 ER20X35 NUT ER20 TOP WRENCH ER20* COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 ER20X52 NUT ER20 TOP WRENCH ER20* COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 ER25X38 NUT ER25 TOP WRENCH ER25* COOLING TUBE C4* WRENCH COOL TUBE C4*
C4 ER25X52 NUT ER25 TOP WRENCH ER25* COOLING TUBE C4* WRENCH COOL TUBE C4* CAMFIX DIN 26623-1
C4 ER32X54 NUT ER32 TOP WRENCH ER32* COOLING TUBE C4* WRENCH COOL TUBE C4*
C5 ER16X100 NUT ER16 TOP WRENCH ER16* COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 ER16X130 NUT ER16 TOP WRENCH ER16* COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 ER20X055 NUT ER20 TOP WRENCH ER20* COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 ER20X100 NUT ER20 TOP WRENCH ER20* COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 ER20X130 NUT ER20 TOP WRENCH ER20* COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 ER25X055 NUT ER25 TOP WRENCH ER25* COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 ER25X100 NUT ER25 TOP WRENCH ER25* COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 ER32X057 NUT ER32 TOP WRENCH ER32* COOLING TUBE C5* WRENCH COOL TUBE C5*
C5 ER32X100 NUT ER32 TOP WRENCH ER32* COOLING TUBE C5* WRENCH COOL TUBE C5*
C6 ER16X100 NUT ER16 TOP WRENCH ER16* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER16X130 NUT ER16 TOP WRENCH ER16* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER16X160 NUT ER16 TOP WRENCH ER16* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER20X060 NUT ER20 TOP WRENCH ER20* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER20X100 NUT ER20 TOP WRENCH ER20* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER20X130 NUT ER20 TOP WRENCH ER20* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER20X160 NUT ER20 TOP WRENCH ER20* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER25X060 NUT ER25 TOP WRENCH ER25* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER25X100 NUT ER25 TOP WRENCH ER25* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER25X130 NUT ER25 TOP WRENCH ER25* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER25X160 NUT ER25 TOP WRENCH ER25* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER32X060 NUT ER32 TOP WRENCH ER32* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER32X100 NUT ER32 TOP WRENCH ER32* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER32X130 NUT ER32 TOP WRENCH ER32* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER32X160 NUT ER32 TOP WRENCH ER32* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER40X065 NUT ER40 TOP WRENCH ER40* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER40X100 NUT ER40 TOP WRENCH ER40* COOLING TUBE C6* WRENCH COOL TUBE C6*
C6 ER40X130 NUT ER40 TOP WRENCH ER40* COOLING TUBE C6* WRENCH COOL TUBE C6*
C8 ER32X100 NUT ER32 TOP WRENCH ER32* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 ER32X160 NUT ER32 TOP WRENCH ER32* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 ER32X70 NUT ER32 TOP WRENCH ER32* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 ER40X100 NUT ER40 TOP WRENCH ER40* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 ER40X160 NUT ER40 TOP WRENCH ER40* COOLING TUBE C8* WRENCH COOL TUBE C8*
C8 ER40X70 NUT ER40 TOP WRENCH ER40* COOLING TUBE C8* WRENCH COOL TUBE C8*
* Optional, should be ordered separately

684-688 715 682-684

C
l8 A
l7 Section view A-A Section view C-C
2e
CAMFIX ISO 26623-1 d4
Toolholder Standard d2 d1 Dm
d5 b2
l1
l11 A
l6
l2 l3
C
CAMFIX b2 d1 ±0.1 d2 d4 d5 ±0.1 Dm e l1 l2 ±0.1 l3 min l6 ±0.15 l7 ±0.15 l8 min l11 ±0.1
C3 28.3 32 15 M12x1.5 3.6 22 0.7 2.5 19 15 6 13 25 8
C4 35.3 40 18 M14x1.5 4.6 28 0.9 2.5 24 20 8 15 30 8
C5 44.4 50 21 M16x1.5 6.1 35 1.12 3 30 20 10 20 37 14
C6 55.8 63 28 M20x2 8.1 44 1.4 3 38 22 12 27 47 15.5
C8 71.1 80 32 M20x2 9.1 55 2 3 48 30 12 28 48 25
C8X 88.7 100 32 M20x2 9.1 55 2 3 48 32 16 28 48 25
C10 88.3 100 43 M20x2 12 72 2.8 3 60 36 16 40 70 26.5
CAMFIX - ISO 26623-1
Standard Quick Change
Shanks Coolant Hole for Data Chip
technological hole
V-groove for ATC (Automatic Tool Change) arm
Magazine and spindle
positioning groove

Features
• Symmetrical design: Due to the symmetrical design, the torque load is
distributed on the polygon, providing a self-centering effect.
• Rigidity: The CAMFIX clamping mechanism is extremely rigid against bending forces.
• Accuracy: The taper and face contact ensure high repeatability within
2 microns, when operated with an automatic tool changer.
