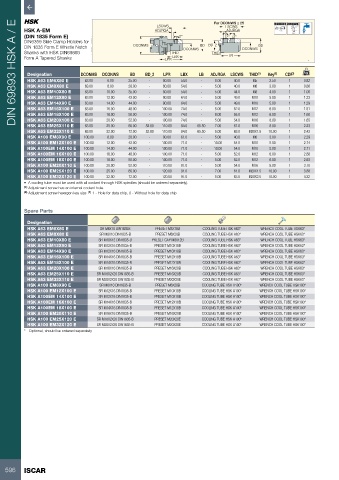

Page 598 - ISCAR(MILLINGCATALOG 38_2021)
P. 598
For DCONWS ≥ 25
DIN 69893 HSK A / E
LSCWS LSCWS A 0.005 A 58-60 HRc
HSK A-EM ADJRGA ADJRGA
(DIN 1835 Form E) 2° 2° 2°
DIN6359 Side Clamp Holders for
DIN 1835 Form E Whistle Notch DCONMS DCONWS BD BD_2 DCONWS BD
Shanks with HSK DIN69893 THID THID
Form A Tapered Shanks LPR LBX LB .
Designation DCONMS DCONWS BD BD_2 LPR LBX LB ADJRGA LSCWS THID (1) Key (2) CDI (3) kg
HSK A63 EM6X80 E 63.00 6.00 25.00 - 80.00 54.0 - 8.00 40.0 M5 2.50 1 0.82
HSK A63 EM8X80 E 63.00 8.00 28.00 - 80.00 54.0 - 5.00 40.0 M6 3.00 1 0.86
HSK A63 EM10X80 E 63.00 10.00 35.00 - 80.00 54.0 - 5.00 44.0 M8 4.00 1 1.00
HSK A63 EM12X90 E 63.00 12.00 42.00 - 90.00 64.0 - 5.00 49.0 M10 5.00 1 1.23
HSK A63 EM14X90 E 63.00 14.00 44.00 - 90.00 64.0 - 5.00 49.0 M10 5.00 1 1.29
HSK A63 EM16X100 E 63.00 16.00 48.00 - 100.00 74.0 - 5.00 52.0 M12 6.00 1 1.51
HSK A63 EM18X100 E 63.00 18.00 50.00 - 100.00 74.0 - 8.00 55.0 M12 6.00 1 1.60
HSK A63 EM20X100 E 63.00 20.00 52.00 - 100.00 74.0 - 5.00 54.0 M16 8.00 1 1.65
HSK A63 EM25X110 E 63.00 25.00 65.00 52.80 110.00 84.0 65.50 7.00 61.0 M16 8.00 1 2.23
HSK A63 EM32X110 E 63.00 32.00 72.00 52.80 110.00 84.0 65.50 5.00 63.0 M20X1.5 10.00 1 2.43
HSK A100 EM8X90 E 100.00 8.00 28.00 - 90.00 61.0 - 5.00 40.0 M6 3.00 1 2.29
HSK A100 EM12X100 E 100.00 12.00 42.00 - 100.00 71.0 - 10.00 54.0 M10 5.00 1 2.74
HSK A100EM 14X100 E 100.00 14.00 44.00 - 100.00 71.0 - 10.00 54.0 M10 5.00 1 2.71
HSK A100EM 16X100 E 100.00 16.00 48.00 - 100.00 71.0 - 5.00 52.0 M12 6.00 1 2.88
HSK A100EM 18X100 E 100.00 18.00 50.00 - 100.00 71.0 - 5.00 52.0 M12 6.00 1 2.93
HSK A100 EM20X110 E 100.00 20.00 52.00 - 110.00 81.0 - 5.00 54.0 M16 8.00 1 3.10
HSK A100 EM25X120 E 100.00 25.00 65.00 - 120.00 91.0 - 7.00 61.0 M20X1.5 10.00 1 3.88
HSK A100 EM32X120 E 100.00 32.00 72.00 - 120.00 91.0 - 5.00 63.0 M20X2.5 10.00 1 4.32
• A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
(1) Adjustment screw has an internal coolant hole.
(2) Adjustment screw hexagon key size (1) 1 - Hole for data chip, 0 - Without hole for data chip
Spare Parts
Designation
HSK A63 EM6X80 E SR M6X10 DIN1835B PRESET M5X18B COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 EM8X80 E SR M8X10 DIN1835-B PRESET M6X20B COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 EM10X80 E SR M10X12 DIN1835-B PRESET CAP M8X12B COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 EM12X90 E SR M12X16 DIN1835-B PRESET M10X18B COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 EM14X90 E SR M12X16 DIN1835-B PRESET M10X18B COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 EM16X100 E SR M14X16 DIN1835-B PRESET M12X18B COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 EM18X100 E SR M14X16 DIN1835-B PRESET M12X18B COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 EM20X100 E SR M16X16 DIN1835-B PRESET M16X20B COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 EM25X110 E SR M18X2X20 DIN1835-B PRESET M16X20B COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A63 EM32X110 E SR M20X2X20 DIN1835-B PRESET M20X20E COOLING TUBE HSK A63* WRENCH COOL TUBE HSK63*
HSK A100 EM8X90 E SR M8X10 DIN1835-B PRESET M6X20B COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 EM12X100 E SR M12X16 DIN1835-B PRESET M10X18B COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100EM 14X100 E SR M12X16 DIN1835-B PRESET M10X18B COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100EM 16X100 E SR M14X16 DIN1835-B PRESET M12X18B COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100EM 18X100 E SR M14X16 DIN1835-B PRESET M12X18B COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 EM20X110 E SR M16X16 DIN1835-B PRESET M16X20B COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 EM25X120 E SR M18X2X20 DIN1835-B PRESET M20X20E COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
HSK A100 EM32X120 E SR M20X2X20 DIN1835-B PRESET M20X20E COOLING TUBE HSK A100* WRENCH COOL TUBE HSK100*
* Optional, should be ordered separately
596 ISCAR
