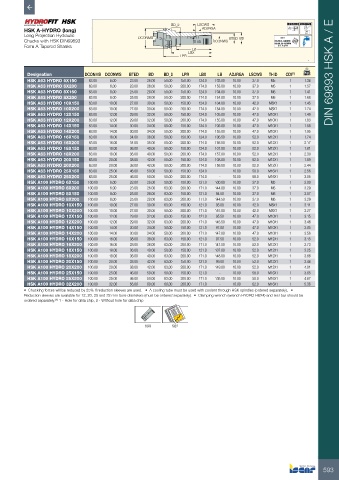

Page 595 - ISCAR(MILLINGCATALOG 38_2021)

BD_2 LSCWS A 0.003 A 58-60 HRc
HSK A-HYDRO (long) ADJRGA
Long Projection Hydraulic DCONMS BD G2.5
Chucks with HSK DIN69893 THID DCONWS BTED HSK A50, 63= 25,000RPM
Form A Tapered Shanks LB HSK A80, 100= 18,000RPM
U<1.0 gmm
LBX
LPR
.
Designation DCONMS DCONWS BTED BD BD_2 LPR LBX LB ADJRGA LSCWS THID CDI (1) kg DIN 69893 HSK A / E
HSK A63 HYDRO 6X150 63.00 6.00 23.00 26.00 50.00 150.00 124.0 103.00 10.00 37.0 M5 1 1.36
HSK A63 HYDRO 6X200 63.00 6.00 23.00 26.00 50.00 200.00 174.0 153.00 10.00 37.0 M5 1 1.57
HSK A63 HYDRO 8X150 63.00 8.00 25.00 28.00 50.00 150.00 124.0 104.00 10.00 37.0 M6 1 1.41
HSK A63 HYDRO 8X200 63.00 8.00 25.00 28.00 50.00 200.00 174.0 154.00 10.00 37.0 M6 1 1.68
HSK A63 HYDRO 10X150 63.00 10.00 27.00 30.00 50.00 150.00 124.0 104.00 10.00 42.0 M8X1 1 1.45
HSK A63 HYDRO 10X200 63.00 10.00 27.00 30.00 50.00 200.00 174.0 154.00 10.00 42.0 M8X1 1 1.74
HSK A63 HYDRO 12X150 63.00 12.00 29.00 32.00 50.00 150.00 124.0 105.00 10.00 47.0 M10X1 1 1.49
HSK A63 HYDRO 12X200 63.00 12.00 29.00 32.00 50.00 200.00 174.0 155.00 10.00 47.0 M10X1 1 1.83
HSK A63 HYDRO 14X150 63.00 14.00 30.00 34.00 50.00 150.00 124.0 105.00 10.00 47.0 M10X1 1 1.58
HSK A63 HYDRO 14X200 63.00 14.00 30.00 34.00 50.00 200.00 174.0 155.00 10.00 47.0 M10X1 1 1.95
HSK A63 HYDRO 16X150 63.00 16.00 34.00 38.00 50.00 150.00 124.0 106.50 10.00 52.0 M12X1 1 1.74
HSK A63 HYDRO 16X200 63.00 16.00 34.00 38.00 50.00 200.00 174.0 156.50 10.00 52.0 M12X1 1 2.17
HSK A63 HYDRO 18X150 63.00 18.00 36.00 40.00 50.00 150.00 124.0 107.00 10.00 52.0 M12X1 1 1.81
HSK A63 HYDRO 18X200 63.00 18.00 36.00 40.00 50.00 200.00 174.0 157.00 10.00 52.0 M12X1 1 2.30
HSK A63 HYDRO 20X150 63.00 20.00 38.00 42.00 50.00 150.00 124.0 108.00 10.00 52.0 M12X1 1 1.89
HSK A63 HYDRO 20X200 63.00 20.00 38.00 42.00 50.00 200.00 174.0 158.00 10.00 52.0 M12X1 1 2.44
HSK A63 HYDRO 25X150 63.00 25.00 46.00 50.00 50.00 150.00 124.0 - 10.00 58.0 M16X1 1 2.56
HSK A63 HYDRO 25X200 63.00 25.00 46.00 50.00 50.00 200.00 174.0 - 10.00 58.0 M16X1 1 3.05
HSK A100 HYDRO 6X150 100.00 6.00 23.00 26.00 50.00 150.00 121.0 100.00 10.00 37.0 M5 1 3.00
HSK A100 HYDRO 6X200 100.00 6.00 23.00 26.00 63.00 200.00 171.0 144.00 10.00 37.0 M5 1 3.29
HSK A100 HYDRO 8X150 100.00 8.00 25.00 28.00 63.00 150.00 121.0 94.50 10.00 37.0 M6 1 3.07
HSK A100 HYDRO 8X200 100.00 8.00 25.00 28.00 63.00 200.00 171.0 144.50 10.00 37.0 M6 1 3.29
HSK A100 HYDRO 10X150 100.00 10.00 27.00 30.00 63.00 150.00 121.0 95.00 10.00 42.0 M8X1 1 3.11
HSK A100 HYDRO 10X200 100.00 10.00 27.00 30.00 50.00 200.00 171.0 151.00 10.00 42.0 M8X1 1 3.27
HSK A100 HYDRO 12X150 100.00 12.00 29.00 32.00 63.00 150.00 121.0 95.50 10.00 47.0 M10X1 1 3.15
HSK A100 HYDRO 12X200 100.00 12.00 29.00 32.00 63.00 200.00 171.0 145.50 10.00 47.0 M10X1 1 3.46
HSK A100 HYDRO 14X150 100.00 14.00 30.00 34.00 50.00 150.00 121.0 97.00 10.00 47.0 M10X1 1 3.05
HSK A100 HYDRO 14X200 100.00 14.00 30.00 34.00 50.00 200.00 171.0 147.00 10.00 47.0 M10X1 1 3.56
HSK A100 HYDRO 16X150 100.00 16.00 38.00 38.00 63.00 150.00 121.0 97.50 10.00 52.0 M12X1 1 3.15
HSK A100 HYDRO 16X200 100.00 16.00 38.00 38.00 63.00 200.00 171.0 147.50 10.00 52.0 M12X1 1 3.73
HSK A100 HYDRO 18X150 100.00 18.00 36.00 40.00 50.00 150.00 121.0 107.00 10.00 52.0 M12X1 1 3.25
HSK A100 HYDRO 18X200 100.00 18.00 36.00 40.00 63.00 200.00 171.0 148.00 10.00 52.0 M12X1 1 3.86
HSK A100 HYDRO 20X150 100.00 20.00 38.00 42.00 63.00 150.00 121.0 99.00 10.00 52.0 M12X1 1 3.46
HSK A100 HYDRO 20X200 100.00 20.00 38.00 42.00 63.00 200.00 171.0 149.00 10.00 52.0 M12X1 1 4.01
HSK A100 HYDRO 25X150 100.00 25.00 46.00 50.00 50.00 150.00 121.0 - 10.00 58.0 M16X1 1 3.65
HSK A100 HYDRO 25X200 100.00 25.00 46.00 50.00 63.00 200.00 171.0 136.00 10.00 58.0 M16X1 1 4.67
HSK A100 HYDRO 32X200 100.00 32.00 56.00 60.00 60.00 200.00 171.0 - 10.00 62.0 M16X1 1 5.36
• Chucking forces will be reduced by 25% if reduction sleeves are used. • A cooling tube must be used with coolant through HSK spindles (ordered separately). •
Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (must be ordered separately). • Clamping wrench (wrench HYDRO HEX4) and test bar should be
ordered separately. (1) 1 - Hole for data chip, 0 - Without hole for data chip
