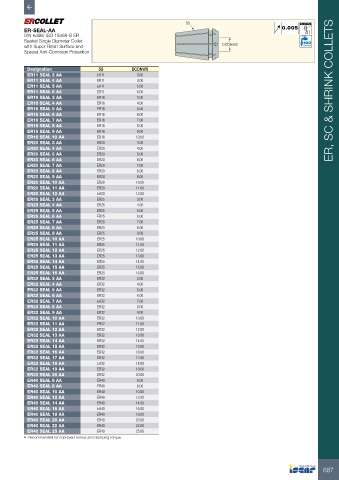

Page 689 - ISCAR(MILLINGCATALOG 38_2021)

SS 46-48 HRc
ER-SEAL-AA 0.005
DIN 6499/ ISO 15488-B ER
Sealed Single Diameter Collet
with Super Finish Surface and DCONWS Bar Max
Special Anti-Corrosion Protection

Designation SS DCONWS
ER11 SEAL 3 AA ER11 3.00
ER11 SEAL 4 AA ER11 4.00
ER11 SEAL 5 AA ER11 5.00
ER11 SEAL 6 AA ER11 6.00 ER, SC & SHRINK COLLETS
ER16 SEAL 3 AA ER16 3.00
ER16 SEAL 4 AA ER16 4.00
ER16 SEAL 5 AA ER16 5.00
ER16 SEAL 6 AA ER16 6.00
ER16 SEAL 7 AA ER16 7.00
ER16 SEAL 8 AA ER16 8.00
ER16 SEAL 9 AA ER16 9.00
ER16 SEAL 10 AA ER16 10.00
ER20 SEAL 3 AA ER20 3.00
ER20 SEAL 4 AA ER20 4.00
ER20 SEAL 5 AA ER20 5.00
ER20 SEAL 6 AA ER20 6.00
ER20 SEAL 7 AA ER20 7.00
ER20 SEAL 8 AA ER20 8.00
ER20 SEAL 9 AA ER20 9.00
ER20 SEAL 10 AA ER20 10.00
ER20 SEAL 11 AA ER20 11.00
ER20 SEAL 12 AA ER20 12.00
ER25 SEAL 3 AA ER25 3.00
ER25 SEAL 4 AA ER25 4.00
ER25 SEAL 5 AA ER25 5.00
ER25 SEAL 6 AA ER25 6.00
ER25 SEAL 7 AA ER25 7.00
ER25 SEAL 8 AA ER25 8.00
ER25 SEAL 9 AA ER25 9.00
ER25 SEAL 10 AA ER25 10.00
ER25 SEAL 11 AA ER25 11.00
ER25 SEAL 12 AA ER25 12.00
ER25 SEAL 13 AA ER25 13.00
ER25 SEAL 14 AA ER25 14.00
ER25 SEAL 15 AA ER25 15.00
ER25 SEAL 16 AA ER25 16.00
ER32 SEAL 3 AA ER32 3.00
ER32 SEAL 4 AA ER32 4.00
ER32 SEAL 5 AA ER32 5.00
ER32 SEAL 6 AA ER32 6.00
ER32 SEAL 7 AA ER32 7.00
ER32 SEAL 8 AA ER32 8.00
ER32 SEAL 9 AA ER32 9.00
ER32 SEAL 10 AA ER32 10.00
ER32 SEAL 11 AA ER32 11.00
ER32 SEAL 12 AA ER32 12.00
ER32 SEAL 13 AA ER32 13.00
ER32 SEAL 14 AA ER32 14.00
ER32 SEAL 15 AA ER32 15.00
ER32 SEAL 16 AA ER32 16.00
ER32 SEAL 17 AA ER32 17.00
ER32 SEAL 18 AA ER32 18.00
ER32 SEAL 19 AA ER32 19.00
ER32 SEAL 20 AA ER32 20.00
ER40 SEAL 6 AA ER40 6.00
ER40 SEAL 8 AA ER40 8.00
ER40 SEAL 10 AA ER40 10.00
ER40 SEAL 12 AA ER40 12.00
ER40 SEAL 14 AA ER40 14.00
ER40 SEAL 16 AA ER40 16.00
ER40 SEAL 18 AA ER40 18.00
ER40 SEAL 20 AA ER40 20.00
ER40 SEAL 22 AA ER40 22.00
ER40 SEAL 25 AA ER40 25.00
• Recommended for improved runout and clamping torque.

687
