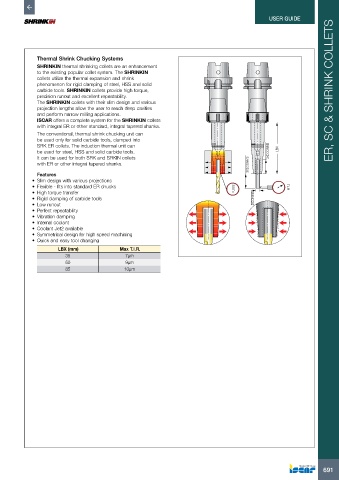

USER GUIDE

Thermal Shrink Chucking Systems
SHRINKIN thermal shrinking collets are an enhancement
to the existing popular collet system. The SHRINKIN
collets utilize the thermal expansion and shrink
phenomenon for rigid clamping of steel, HSS and solid
carbide tools. SHRINKIN collets provide high torque, ER, SC & SHRINK COLLETS
precision runout and excellent repeatability.
The SHRINKIN collets with their slim design and various
projection lengths allow the user to reach deep cavities
and perform narrow milling applications.
ISCAR offers a complete system for the SHRINKIN collets
with integral ER or other standard, integral tapered shanks.
The conventional, thermal shrink chucking unit can
be used only for solid carbide tools, clamped into
SRK ER collets. The induction thermal unit can
be used for steel, HSS and solid carbide tools. 3XDCONMS LBX
It can be used for both SRK and SRKIN collets
with ER or other integral tapered shanks. 3XDCONMS

Features
• Slim design with various projections
• Flexible - fits into standard ER chucks 300˚ c T.I.R
• High torque transfer
• Rigid clamping of carbide tools DCONMS
• Low runout
• Perfect repeatability
• Vibration damping
• Internal coolant
• Coolant Jet2 available
• Symmetrical design for high speed machining
• Quick and easy tool changing
LBX (mm) Max T.I.R.
35 7µm
60 9µm
85 10µm

691
