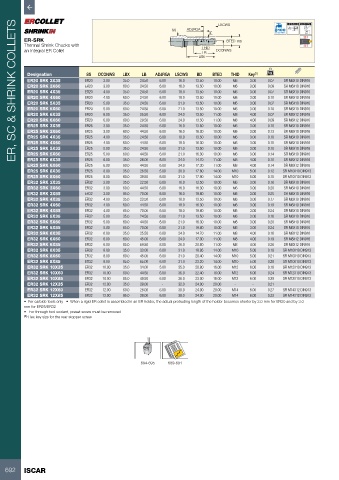

Page 694 - ISCAR(MILLINGCATALOG 38_2021)

ER, SC & SHRINK COLLETS
LSCWS A 0.003 A 58-60 HRc
SS ADJRGA 4˚ Bar Max

ER-SRK BTED BD
Thermal Shrink Chucks with THID
an Integral ER Collet LB DCONWS
LBX

Designation SS DCONWS LBX LB ADJRGA LSCWS BD BTED THID Key (1) kg
ER20 SRK 3X35 ER20 3.00 35.0 24.50 6.00 16.0 13.50 10.00 M6 3.00 0.07 SR M6X10 DIN916
ER20 SRK 3X60 ER20 3.00 60.0 24.50 6.00 16.0 13.50 10.00 M6 3.00 0.09 SR M6X10 DIN916
ER20 SRK 4X35 ER20 4.00 35.0 24.50 6.00 18.0 13.50 10.00 M6 3.00 0.07 SR M6X10 DIN916
ER20 SRK 4X60 ER20 4.00 60.0 24.50 6.00 18.0 13.50 10.00 M6 3.00 0.10 SR M6X10 DIN916
ER20 SRK 5X35 ER20 5.00 35.0 24.50 6.00 21.0 13.50 10.00 M6 3.00 0.07 SR M6X10 DIN916
ER20 SRK 5X60 ER20 5.00 60.0 24.50 6.00 21.0 13.50 10.00 M6 3.00 0.10 SR M6X10 DIN916
ER20 SRK 6X35 ER20 6.00 35.0 25.50 6.00 24.0 13.50 11.00 M8 4.00 0.07 SR M8X12 DIN916
ER20 SRK 6X60 ER20 6.00 60.0 29.50 6.00 24.0 13.50 11.00 M8 4.00 0.09 SR M8X12 DIN916
ER25 SRK 3X35 ER25 3.00 35.0 24.50 6.00 16.0 13.50 10.00 M6 3.00 0.10 SR M6X10 DIN916
ER25 SRK 3X60 ER25 3.00 60.0 44.50 6.00 16.0 16.30 10.00 M6 3.00 0.13 SR M6X10 DIN916
ER25 SRK 4X35 ER25 4.00 35.0 24.50 6.00 18.0 13.50 10.00 M6 3.00 0.10 SR M6X10 DIN916
ER25 SRK 4X60 ER25 4.00 60.0 44.50 6.00 18.0 16.30 10.00 M6 3.00 0.15 SR M6X10 DIN916
ER25 SRK 5X35 ER25 5.00 35.0 24.50 6.00 21.0 13.50 10.00 M6 3.00 0.10 SR M6X10 DIN916
ER25 SRK 5X60 ER25 5.00 60.0 44.50 6.00 21.0 16.30 10.00 M6 3.00 0.14 SR M6X10 DIN916
ER25 SRK 6X35 ER25 6.00 35.0 26.00 6.00 24.0 14.70 11.00 M8 4.00 0.10 SR M8X12 DIN916
ER25 SRK 6X60 ER25 6.00 60.0 44.50 6.00 24.0 17.30 11.00 M8 4.00 0.14 SR M8X12 DIN916
ER25 SRK 8X35 ER25 8.00 35.0 26.50 5.00 30.0 17.80 14.00 M10 5.00 0.12 SR M10X10 DIN913
ER25 SRK 8X60 ER25 8.00 60.0 39.50 6.00 31.0 17.90 14.00 M10 5.00 0.15 SR M10X10 DIN913
ER32 SRK 3X35 ER32 3.00 35.0 22.50 6.00 16.0 13.50 10.00 M6 3.00 0.16 SR M6X10 DIN916
ER32 SRK 3X60 ER32 3.00 60.0 44.50 6.00 16.0 16.30 10.00 M6 3.00 0.20 SR M6X10 DIN916
ER32 SRK 3X85 ER32 3.00 85.0 70.00 6.00 16.0 19.80 10.00 M6 3.00 0.25 SR M6X10 DIN916
ER32 SRK 4X35 ER32 4.00 35.0 23.50 6.00 18.0 13.50 10.00 M6 3.00 0.17 SR M6X10 DIN916
ER32 SRK 4X60 ER32 4.00 60.0 44.50 6.00 18.0 16.30 10.00 M6 3.00 0.19 SR M6X10 DIN916
ER32 SRK 4X85 ER32 4.00 85.0 70.00 6.00 18.0 19.80 10.00 M6 3.00 0.24 SR M6X10 DIN916
ER32 SRK 5X35 ER32 5.00 35.0 24.50 6.00 21.0 13.50 10.00 M6 3.00 0.16 SR M6X10 DIN916
ER32 SRK 5X60 ER32 5.00 60.0 44.50 6.00 21.0 16.30 10.00 M6 3.00 0.20 SR M6X10 DIN916
ER32 SRK 5X85 ER32 5.00 85.0 70.00 6.00 21.0 19.80 10.00 M6 3.00 0.24 SR M6X10 DIN916
ER32 SRK 6X35 ER32 6.00 35.0 25.50 6.00 24.0 14.70 11.00 M8 4.00 0.16 SR M8X12 DIN916
ER32 SRK 6X60 ER32 6.00 60.0 45.00 6.00 24.0 17.30 11.00 M8 4.00 0.19 SR M8X12 DIN916
ER32 SRK 6X85 ER32 6.00 85.0 69.50 8.00 26.0 20.80 11.00 M8 4.00 0.26 SR M8X12 DIN916
ER32 SRK 8X35 ER32 8.00 35.0 33.00 6.00 31.0 18.95 14.00 M10 5.00 0.18 SR M10X10 DIN913
ER32 SRK 8X60 ER32 8.00 60.0 45.00 6.00 31.0 20.40 14.00 M10 5.00 0.21 SR M10X10 DIN913
ER32 SRK 8X85 ER32 8.00 85.0 65.00 6.00 31.0 23.20 14.00 M10 5.00 0.28 SR M10X10 DIN913
ER32 SRK 10X35 ER32 10.00 35.0 34.00 5.00 35.0 20.80 16.00 M12 6.00 0.18 SR M12X10 DIN913
ER32 SRK 10X60 ER32 10.00 60.0 44.50 6.00 36.0 22.40 16.00 M12 6.00 0.24 SR M12X10 DIN913
ER32 SRK 10X85 ER32 10.00 85.0 49.50 6.00 36.0 23.00 16.00 M12 6.00 0.29 SR M12X10 DIN913
ER32 SRK 12X35 ER32 12.00 35.0 28.00 - 32.0 24.00 20.00 - - 0.21
ER32 SRK 12X60 ER32 12.00 60.0 28.00 6.00 38.0 24.00 20.00 M14 6.00 0.27 SR M14X12 DIN913
ER32 SRK 12X85 ER32 12.00 85.0 28.00 6.00 38.0 24.00 20.00 M14 6.00 0.33 SR M14X12 DIN913
• For carbide tools only • When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by 2.0 mm for ER20 and by 3.0
mm for ER25/ER32
• For through tool coolant, preset screw must be removed
(1) Hex key size for the rear stopper screw

694-695 689-691

692 ISCAR
