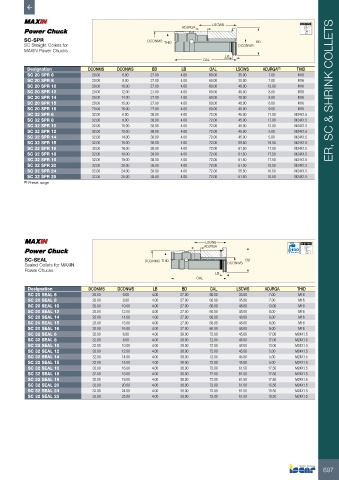

Page 699 - ISCAR(MILLINGCATALOG 38_2021)

LSCWS 58-60 HRc
ADJRGA
SC-SPR DCONMS BD
SC Straight Collets for THID DCONWS
MAXIN Power Chucks
LB
OAL
Designation DCONMS DCONWS BD LB OAL LSCWS ADJRGA (1) THID
SC 20 SPR 6 20.00 6.00 27.00 4.00 60.00 35.00 7.00 M16
SC 20 SPR 8 20.00 8.00 27.00 4.00 60.00 35.00 7.00 M16
SC 20 SPR 10 20.00 10.00 27.00 4.00 60.00 48.00 13.00 M16
SC 20 SPR 12 20.00 12.00 27.00 4.00 60.00 48.00 8.00 M16 ER, SC & SHRINK COLLETS
SC 20 SPR 14 20.00 14.00 27.00 4.00 60.00 48.00 8.00 M16
SC 20 SPR 15 20.00 15.00 27.00 4.00 60.00 48.00 8.00 M16
SC 20 SPR 16 20.00 16.00 27.00 4.00 60.00 48.00 9.00 M16
SC 32 SPR 6 32.00 6.00 38.00 4.00 72.00 45.00 17.00 M24X1.5
SC 32 SPR 8 32.00 8.00 38.00 4.00 72.00 45.00 17.00 M24X1.5
SC 32 SPR 10 32.00 10.00 38.00 4.00 72.00 48.00 13.00 M24X1.5
SC 32 SPR 12 32.00 12.00 38.00 4.00 72.00 45.00 5.00 M24X1.5
SC 32 SPR 14 32.00 14.00 38.00 4.00 72.00 45.00 5.00 M24X1.5
SC 32 SPR 15 32.00 15.00 38.00 4.00 72.00 59.50 19.50 M24X1.5
SC 32 SPR 16 32.00 16.00 38.00 4.00 72.00 61.50 17.50 M24X1.5
SC 32 SPR 18 32.00 18.00 38.00 4.00 72.00 61.50 17.50 M24X1.5
SC 32 SPR 19 32.00 19.00 38.00 4.00 72.00 61.50 17.50 M24X1.5
SC 32 SPR 20 32.00 20.00 38.00 4.00 72.00 61.50 15.50 M24X1.5
SC 32 SPR 24 32.00 24.00 38.00 4.00 72.00 55.50 10.50 M24X1.5
SC 32 SPR 25 32.00 25.00 38.00 4.00 72.00 61.50 10.50 M24X1.5
(1) Preset range

LSCWS 58-60 HRc
ADJRGA Bar Max
SC-SEAL DCONMS THID BD
Sealed Collets for MAXIN DCONWS
Power Chucks
LB
OAL
Designation DCONMS DCONWS LB BD OAL LSCWS ADJRGA THID
SC 20 SEAL 6 20.00 6.00 4.00 27.00 60.00 35.00 7.00 M16
SC 20 SEAL 8 20.00 8.00 4.00 27.00 60.00 35.00 7.00 M16
SC 20 SEAL 10 20.00 10.00 4.00 27.00 60.00 48.00 13.00 M16
SC 20 SEAL 12 20.00 12.00 4.00 27.00 60.00 48.00 8.00 M16
SC 20 SEAL 14 20.00 14.00 4.00 27.00 60.00 48.00 8.00 M16
SC 20 SEAL 15 20.00 15.00 4.00 27.00 60.00 48.00 8.00 M16
SC 20 SEAL 16 20.00 16.00 4.00 27.00 60.00 48.00 9.00 M16
SC 32 SEAL 6 32.00 6.00 4.00 38.00 72.00 45.00 17.00 M24X1.5
SC 32 SEAL 8 32.00 8.00 4.00 38.00 72.00 45.00 17.00 M24X1.5
SC 32 SEAL 10 32.00 10.00 4.00 38.00 72.00 48.00 13.00 M24X1.5
SC 32 SEAL 12 32.00 12.00 4.00 38.00 72.00 45.00 5.00 M24X1.5
SC 32 SEAL 14 32.00 14.00 4.00 38.00 72.00 45.00 5.00 M24X1.5
SC 32 SEAL 15 32.00 15.00 4.00 38.00 72.00 45.00 5.00 M24X1.5
SC 32 SEAL 16 32.00 16.00 4.00 38.00 72.00 61.50 17.50 M24X1.5
SC 32 SEAL 18 32.00 18.00 4.00 38.00 72.00 61.50 17.50 M24X1.5
SC 32 SEAL 19 32.00 19.00 4.00 38.00 72.00 61.50 17.50 M24X1.5
SC 32 SEAL 20 32.00 20.00 4.00 38.00 72.00 61.50 15.50 M24X1.5
SC 32 SEAL 24 32.00 24.00 4.00 38.00 72.00 61.50 15.50 M24X1.5
SC 32 SEAL 25 32.00 25.00 4.00 38.00 72.00 61.50 10.50 M24X1.5
