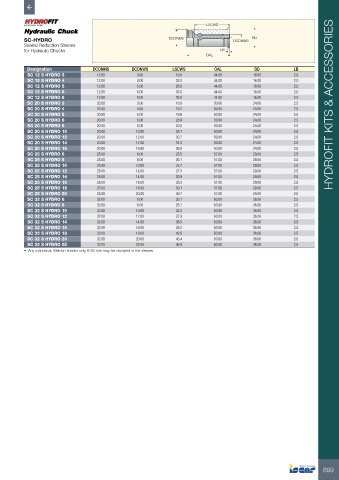

Page 701 - ISCAR(MILLINGCATALOG 38_2021)

LSCWS

SC-HYDRO DCONMS DCONWS BD
Sealed Reduction Sleeves
for Hydraulic Chucks LB
OAL
Designation DCONMS DCONWS LSCWS OAL BD LB
SC 12 S HYDRO 3 12.00 3.00 19.0 44.00 16.00 2.0
SC 12 S HYDRO 4 12.00 4.00 24.0 44.00 16.00 2.0
SC 12 S HYDRO 5 12.00 5.00 28.0 44.00 16.00 2.0
SC 12 S HYDRO 6 12.00 6.00 33.0 44.00 16.00 2.0
SC 12 S HYDRO 8 12.00 8.00 39.0 44.00 16.00 2.0
SC 20 S HYDRO 3 20.00 3.00 18.9 50.00 24.00 2.5 HYDROFIT KITS & ACCESSORIES
SC 20 S HYDRO 4 20.00 4.00 19.2 50.00 24.00 2.5
SC 20 S HYDRO 5 20.00 5.00 19.6 50.00 24.00 2.5
SC 20 S HYDRO 6 20.00 6.00 28.9 50.00 24.00 2.5
SC 20 S HYDRO 8 20.00 8.00 29.5 50.00 24.00 2.5
SC 20 S HYDRO 10 20.00 10.00 33.1 50.00 24.00 2.5
SC 20 S HYDRO 12 20.00 12.00 33.7 50.00 24.00 2.5
SC 20 S HYDRO 14 20.00 14.00 34.3 50.00 24.00 2.5
SC 20 S HYDRO 16 20.00 16.00 39.9 50.00 24.00 2.5
SC 25 S HYDRO 6 25.00 6.00 25.5 57.00 29.00 2.5
SC 25 S HYDRO 8 25.00 8.00 26.1 57.00 29.00 2.5
SC 25 S HYDRO 10 25.00 10.00 32.7 57.00 29.00 2.5
SC 25 S HYDRO 12 25.00 12.00 37.3 57.00 29.00 2.5
SC 25 S HYDRO 14 25.00 14.00 32.9 57.00 29.00 2.5
SC 25 S HYDRO 16 25.00 16.00 38.5 57.00 29.00 2.5
SC 25 S HYDRO 18 25.00 18.00 39.1 57.00 29.00 2.5
SC 25 S HYDRO 20 25.00 20.00 40.7 57.00 29.00 2.5
SC 32 S HYDRO 6 32.00 6.00 26.1 63.00 36.00 2.5
SC 32 S HYDRO 8 32.00 8.00 28.7 63.00 36.00 2.5
SC 32 S HYDRO 10 32.00 10.00 32.3 63.00 36.00 2.5
SC 32 S HYDRO 12 32.00 12.00 37.9 63.00 36.00 2.5
SC 32 S HYDRO 14 32.00 14.00 38.5 63.00 36.00 2.5
SC 32 S HYDRO 16 32.00 16.00 38.2 63.00 36.00 2.5
SC 32 S HYDRO 18 32.00 18.00 42.8 63.00 36.00 2.5
SC 32 S HYDRO 20 32.00 20.00 43.4 63.00 36.00 2.5
SC 32 S HYDRO 25 32.00 25.00 46.9 63.00 36.00 2.5
• Any cylindrical, Weldon shanks only 6-20 mm may be clamped in the sleeves
