P. 705

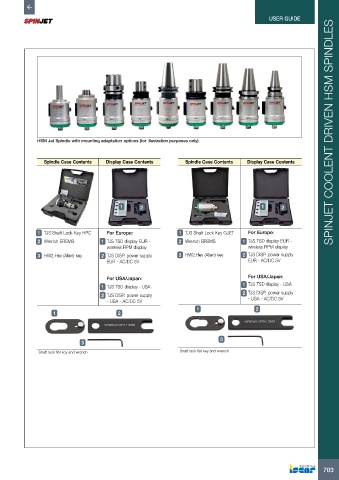

USER GUIDE
HSM Jet Spindle with mounting adaptation options (for illustration purposes only) SPINJET COOLENT DRIVEN HSM SPINDLES
Spindle Case Contents Display Case Contents Spindle Case Contents Display Case Contents
1 2 1 2
1 TJS Shaft Lock Key HPC For Europe: 1 TJS Shaft Lock Key GJET For Europe:
2 Wrench ERSMS 1 TJS TSD display EUR - 2 Wrench ERSMS 1 TJS TSD display EUR -
wireless RPM display wireless RPM display
3 HW2.Hex (Allen) key 2 TJS DISP. power supply 3 HW2.Hex (Allen) key 2 TJS DISP. power supply
EUR - AC/DC 5V EUR - AC/DC 5V
For USA/Japan: For USA/Japan:
1 TJS TSD display - USA
1 TJS TSD display - USA
2 TJS DISP. power supply 2 TJS DISP. power supply
- USA - AC/DC 5V - USA - AC/DC 5V
1 2
1 2
3
3
Shaft lock flat key and wrench Shaft lock flat key and wrench
703
