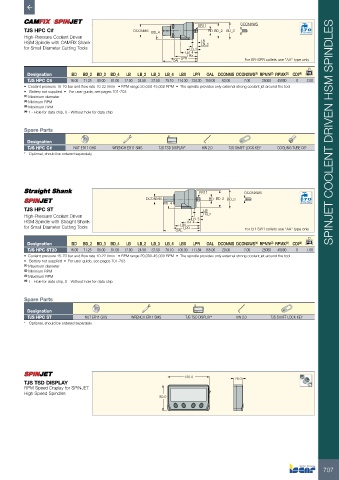

Page 709 - ISCAR(MILLINGCATALOG 38_2021)

DCONXWS
TJS HPC C# DCONMS BD_4 ER11 BD BD_2 BD_3 70
Bar Max
High-Pressure Coolant Driven
HSM Spindle with CAMFIX Shank LB
LB_2
for Small Diameter Cutting Tools LB_3
LB_4
LPR LBX
OAL For ER-SPR collets use "AA" type only
Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL DCONMS DCONXWS (1) RPMN (2) RPMX (3) CDI (4) kg
TJS HPC C6 16.00 71.25 80.00 81.00 17.00 24.58 37.50 79.10 114.30 124.30 159.00 63.00 7.00 25000 45000 0 2.00
• Coolant pressure 15-70 bar and flow rate 10-22 l/min • RPM range 20,000-45,000 RPM • The spindle provides only external strong coolant jet around the tool
• Battery not supplied • For user guide, see pages 701-703
(1) Maximum diameter
(2) Minimum RPM
(3) Maximum RPM
(4) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts SPINJET COOLENT DRIVEN HSM SPINDLES
Designation
TJS HPC C# NUT ER11 GHS WRENCH ER11 SMS TJS TSD DISPLAY* HW 2.0 TJS SHAFT LOCK KEY COOLING TUBE C6*
* Optional, should be ordered separately

ER11 DCONXWS
DCONMS BD_4 BD BD_2 BD_3 70
Bar Max
TJS HPC ST LB
High-Pressure Coolant Driven LB_3 LB_2
HSM Spindle with Straight Shank LB_4
for Small Diameter Cutting Tools LBX
LPR
OAL For ER-SPR collets use "AA" type only
Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL DCONMS DCONXWS (1) RPMN (2) RPMX (3) CDI (4) kg
TJS HPC ST20 16.00 71.25 80.00 81.00 17.00 24.58 37.50 79.10 105.30 111.84 155.00 20.00 7.00 25000 45000 0 1.50
• Coolant pressure 15-70 bar and flow rate 10-22 l/min • RPM range 20,000-45,000 RPM • The spindle provides only external strong coolant jet around the tool
• Battery not supplied • For user guide, see pages 701-703
(1) Maximum diameter
(2) Minimum RPM
(3) Maximum RPM
(4) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
TJS HPC ST NUT ER11 GHS WRENCH ER11 SMS TJS TSD DISPLAY* HW 2.0 TJS SHAFT LOCK KEY
* Optional, should be ordered separately

130.0
TJS TSD DISPLAY 29.0
RPM Speed Display for SPINJET
High Speed Spindles
80.0

707
