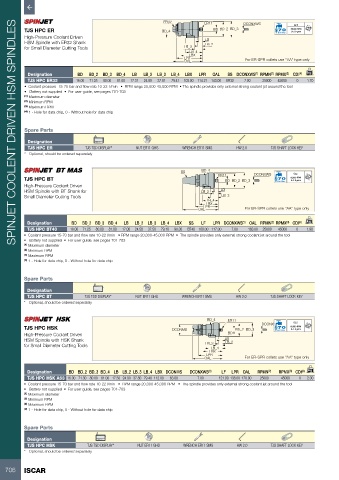

Page 708 - ISCAR(MILLINGCATALOG 38_2021)

ER32 ER11 DCONXWS
SPINJET COOLENT DRIVEN HSM SPINDLES
G2.5
TJS HPC ER BD_4 BD BD_2 BD_3 70 60,000 RPM
U<1.0 gmm
Bar Max
High-Pressure Coolant Driven LB
HSM Spindle with ER32 Shank LB_2
for Small Diameter Cutting Tools LB_3
LB_4
LBX
LPR
OAL For ER-SPR collets use "AA" type only
Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX LPR OAL SS DCONXWS (1) RPMN (2) RPMX (3) CDI (4) kg
TJS HPC ER32 16.00 71.25 80.00 81.00 17.31 24.89 37.81 79.41 103.00 114.21 143.00 ER32 7.00 25000 45000 0 1.70
• Coolant pressure 15-70 bar and flow rate 10-22 l/min • RPM range 20,000-45,000 RPM • The spindle provides only external strong coolant jet around the tool
• Battery not supplied • For user guide, see pages 701-703
(1) Maximum diameter
(2) Minimum RPM
(3) Maximum RPM
(4) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts
Designation
TJS HPC ER TJS TSD DISPLAY* NUT ER11 GHS WRENCH ER11 SMS HW 2.0 TJS SHAFT LOCK KEY
* Optional, should be ordered separately

SS BD_4 G2.5
TJS HPC BT ER11 BD BD_2 BD_3 DCONXWS 70 60,000 RPM
U<1.0 gmm
Bar Max
High-Pressure Coolant Driven
HSM Spindle with BT Shank for LB_2 LB
Small Diameter Cutting Tools LB_3
LB_4
LBX
LPR
OAL For ER-SPR collets use "AA" type only
Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX SS LF LPR DCONXWS (1) OAL RPMN (2) RPMX (3) CDI (4) kg
TJS HPC BT40 16.00 71.25 80.00 81.00 17.00 24.58 37.50 79.10 90.30 BT40 100.00 117.00 7.00 183.00 25000 45000 0 1.90
• Coolant pressure 15-70 bar and flow rate 10-22 l/min • RPM range 20,000-45,000 RPM • The spindle provides only external strong coolant jet around the tool
• Battery not supplied • For user guide, see pages 701-703
(1) Maximum diameter
(2) Minimum RPM
(3) Maximum RPM
(4) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
TJS HPC BT TJS TSD DISPLAY* NUT ER11 GHS WRENCH ER11 SMS HW 2.0 TJS SHAFT LOCK KEY
* Optional, should be ordered separately

BD_4 ER11 G2.5
TJS HPC HSK DCONMS BD_2 BD_3 DCONXWS 70 60,000 RPM
U<1.0 gmm
Bar Max
High-Pressure Coolant Driven BD
HSM Spindle with HSK Shank LB
LB_2
for Small Diameter Cutting Tools LB_3 LB_4
LBX
LPR
OAL For ER-SPR collets use "AA" type only
Designation BD BD_2 BD_3 BD_4 LB LB_2 LB_3 LB_4 LBX DCONMS DCONXWS (1) LF LPR OAL RPMN (2) RPMX (3) CDI (4) kg
TJS HPC HSK A63 16.00 71.30 80.00 81.00 17.30 24.90 37.80 79.40 112.00 63.00 7.00 121.00 138.00 170.00 25000 45000 0 2.00
• Coolant pressure 15-70 bar and flow rate 10-22 l/min • RPM range 20,000-45,000 RPM • The spindle provides only external strong coolant jet around the tool
• Battery not supplied • For user guide, see pages 701-703
(1) Maximum diameter
(2) Minimum RPM
(3) Maximum RPM
(4) 1 - Hole for data chip, 0 - Without hole for data chip

Spare Parts

Designation
TJS HPC HSK TJS TSD DISPLAY* NUT ER11 GHS WRENCH ER11 SMS HW 2.0 TJS SHAFT LOCK KEY
* Optional, should be ordered separately

706 ISCAR
