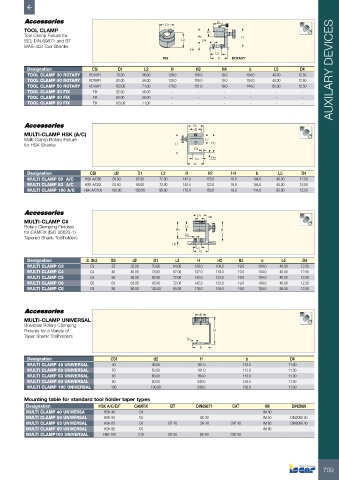

Page 711 - ISCAR(MILLINGCATALOG 38_2021)

D1 D1
TOOL CLAMP
Tool Clamp Fixture for H2 L2
ISO, DIN 69871 and BT L2 D4 H
MAS-403 Tool Shanks
H4
L5
FIX b ROTARY
Designation CSI D1 L2 H H2 H4 b L5 D4 AUXILARY DEVICES
TOOL CLAMP 30 ROTARY ROTARY 70.00 56.00 128.0 109.0 19.0 104.0 40.00 12.50
TOOL CLAMP 40 ROTARY ROTARY 82.00 56.00 128.0 109.0 19.0 104.0 40.00 12.50
TOOL CLAMP 50 ROTARY ROTARY 103.00 71.00 170.0 151.0 19.0 144.0 85.00 12.50
TOOL CLAMP 30 FIX FIX 82.00 58.00 - - - - - -
TOOL CLAMP 40 FIX FIX 82.00 58.00 - - - - - -
TOOL CLAMP 50 FIX FIX 103.00 71.00 - - - - - -

D1
d2
MULTI-CLAMP HSK (A/C)
Multi-Clamp Rotary Fixture L2
for HSK Shanks H H2
D4
L5 H4
b
Designation CSI d2 D1 L2 H H2 H4 b L5 D4
MULTI CLAMP 50 A/C HSK A/C50 50.00 82.00 72.00 142.0 123.0 19.0 104.0 40.00 12.50
MULTI CLAMP 63 A/C HSK A/C63 63.00 95.00 72.00 142.0 123.0 19.0 104.0 40.00 12.50
MULTI CLAMP 100 A/C HSK A/C100 100.00 130.00 90.00 178.0 159.0 19.0 144.0 85.00 12.50

D1
MULTI-CLAMP C# d2
Rotary Clamping Fixtures L2
for CAMFIX (ISO 26623-1) H2 D4 H
Tapered Shank Toolholders
H3
L5
b
Designation S. Std. SS d2 D1 L2 H H2 H3 b L5 D4
MULTI CLAMP C3 C3 32 32.00 70.00 64.00 128.0 109.0 19.0 104.0 40.00 12.50
MULTI CLAMP C4 C4 40 40.00 78.00 67.00 137.0 118.0 19.0 104.0 40.00 12.50
MULTI CLAMP C5 C5 50 50.00 82.00 72.00 142.0 123.0 19.0 104.0 40.00 12.50
MULTI CLAMP C6 C6 63 63.00 95.00 72.00 142.0 123.0 19.0 104.0 40.00 12.50
MULTI CLAMP C8 C8 80 80.00 130.00 90.00 178.0 159.0 19.0 104.0 85.00 12.50

d2

MULTI-CLAMP UNIVERSAL
Universal Rotary Clamping
Fixtures for a Variety of H
Taper Shank Toolholders
D4
b
Designation CSI d2 H b D4
MULTI CLAMP 40 UNIVERSAL 40 40.00 161.0 112.0 11.00
MULTI CLAMP 50 UNIVERSAL 50 50.00 161.0 112.0 11.00
MULTI CLAMP 63 UNIVERSAL 63 63.00 164.0 113.0 11.00
MULTI CLAMP 80 UNIVERSAL 80 80.00 240.0 150.0 11.00
MULTI CLAMP 100 UNIVERSAL 100 100.00 240.0 150.0 11.00

Mounting table for standard tool holder taper types
Designation HSK A/C/E/F CAMFIX BT DIN69871 CAT IM DIN2080
MULTI CLAMP 40 UNIVERSA HSK 40 C4 IM 40
MULTI CLAMP 50 UNIVERSAL HSK 50 C5 SK 30 IM 50 DIN2080 30
MULTI CLAMP 63 UNIVERSAL HSK 63 C6 BT 40 SK 40 CAT 40 IM 63 DIN2080 40
MULTI CLAMP 80 UNIVERSAL HSK 80 C8 IM 80
MULTI CLAMP100 UNIVERSAL HSK 100 C10 BT 50 SK 50 CAT 50
