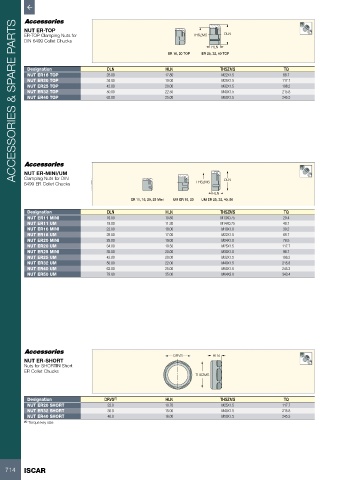

Page 716 - ISCAR(MILLINGCATALOG 38_2021)

ACCESSORIES & SPARE PARTS
NUT ER-TOP
ER-TOP Clamping Nuts for THSZMS DLN
DIN 6499 Collet Chucks
HLN
ER 16, 20 TOP ER 25, 32, 40 TOP

Designation DLN HLN THSZMS TQ
NUT ER16 TOP 28.00 17.80 M22X1.5 68.7
NUT ER20 TOP 34.00 19.00 M25X1.5 117.7
NUT ER25 TOP 42.00 20.00 M32X1.5 196.2
NUT ER32 TOP 50.00 22.50 M40X1.5 215.8
NUT ER40 TOP 63.00 25.00 M50X1.5 245.3

NUT ER-MINI/UM
Clamping Nuts for DIN DLN
6499 ER Collet Chucks THSZMS
HLN
ER 11, 16, 20, 25 Mini UM ER 16, 20 UM ER 25, 32, 40, 50

Designation DLN HLN THSZMS TQ
NUT ER11 MINI 16.00 10.80 M13X0.75 29.4
NUT ER11 UM 19.00 11.30 M14X0.75 49.1
NUT ER16 MINI 22.00 18.00 M19X1.0 39.2
NUT ER16 UM 28.00 17.00 M22X1.5 68.7
NUT ER20 MINI 28.00 19.00 M24X1.0 78.5
NUT ER20 UM 34.00 19.50 M25X1.5 117.7
NUT ER25 MINI 35.00 20.00 M30X1.0 98.1
NUT ER25 UM 42.00 20.00 M32X1.5 196.2
NUT ER32 UM 50.00 22.00 M40X1.5 215.8
NUT ER40 UM 63.00 25.00 M50X1.5 245.3
NUT ER50 UM 78.00 35.00 M64X2.0 343.4

DRVS HLN
NUT ER-SHORT
Nuts for SHORTIN Short
ER Collet Chucks
THSZMS

Designation DRVS (1) HLN THSZMS TQ
NUT ER20 SHORT 22.0 10.70 M25X1.5 117.7
NUT ER32 SHORT 36.0 15.00 M40X1.5 215.8
NUT ER40 SHORT 46.0 16.00 M50X1.5 245.3
(1) Torque key size

714 ISCAR
