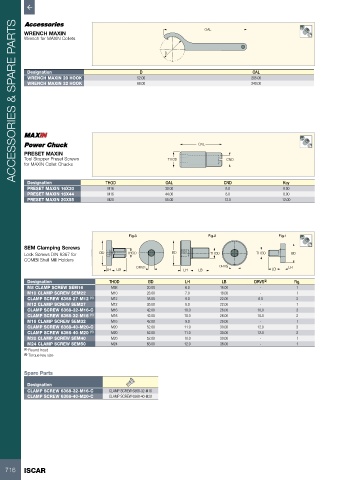

Page 718 - ISCAR(MILLINGCATALOG 38_2021)

ACCESSORIES & SPARE PARTS
WRENCH MAXIN OAL
Wrench for MAXIN Collets

D

Designation D OAL
WRENCH MAXIN 20 HOOK 52.00 205.00
WRENCH MAXIN 32 HOOK 68.00 240.00

OAL

PRESET MAXIN
Tool Stopper Preset Screws THOD CND
for MAXIN Collet Chucks

Designation THOD OAL CND Key
PRESET MAXIN 16X30 M16 30.00 8.0 8.00
PRESET MAXIN 16X44 M16 44.00 8.0 8.00
PRESET MAXIN 20X55 M20 55.00 12.0 12.00

Fig.3 Fig.2 Fig.1

SEM Clamping Screws
Lock Screws DIN 6367 for BD THOD BD THOD THOD BD
COMBI Shell Mill Holders
DRVS DRVS LH
LH LB LH LB LB
Designation THOD BD LH LB DRVS (2) Fig.
M8 CLAMP SCREW SEM16 M08 20.00 6.0 16.00 - 1
M10 CLAMP SCREW SEM22 M10 28.00 7.0 18.00 - 1
CLAMP SCREW 6368-27-M12 (1) M12 35.00 9.0 22.00 6.0 2
M12 CLAMP SCREW SEM27 M12 35.00 8.0 22.00 - 1
CLAMP SCREW 6368-32-M16-C M16 42.00 10.0 26.00 10.0 3
CLAMP SCREW 6368-32-M16 (1) M16 42.00 10.0 26.00 10.0 2
M16 CLAMP SCREW SEM32 M16 42.00 9.0 26.00 - 1
CLAMP SCREW 6368-40-M20-C M20 52.00 11.0 30.00 12.0 3
CLAMP SCREW 6368-40-M20 (1) M20 52.00 11.0 30.00 12.0 2
M20 CLAMP SCREW SEM40 M20 52.00 10.0 30.00 - 1
M24 CLAMP SCREW SEM50 M24 63.00 12.0 36.00 - 1
(1) Round head
(2) Torque key size

Spare Parts

Designation
CLAMP SCREW 6368-32-M16-C CLAMP SCREW 6368-32-M16
CLAMP SCREW 6368-40-M20-C CLAMP SCREW 6368-40-M20

716 ISCAR
