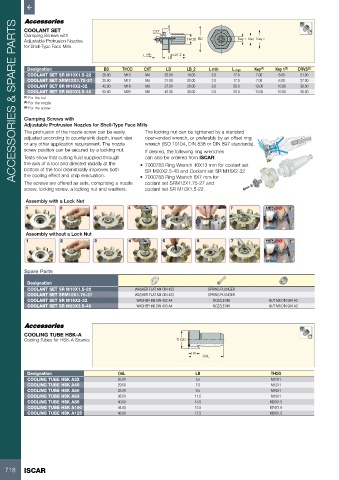

Page 720 - ISCAR(MILLINGCATALOG 38_2021)

ACCESSORIES & SPARE PARTS
COOLANT SET CXT
Clamping Screws with
Adjustable Protrusion Nozzles THOD BD Key 1 Key Key 2
for Shell-Type Face Mills
min LB_2
L max
LB
Designation BD THOD CXT LB LB_2 L min L max Key (1) Key 1 (2) DRVS (3)
COOLANT SET SR M10X1.5-22 28.00 M10 M4 25.00 18.00 2.0 17.0 7.00 6.00 21.00
COOLANT SET SRM12X1.75-27 35.00 M12 M4 31.00 22.00 2.0 17.0 7.00 6.00 27.00
COOLANT SET SR M16X2-32 42.00 M16 M8 37.00 26.00 3.0 25.0 13.00 10.00 30.00
COOLANT SET SR M20X2.5-40 52.00 M20 M8 45.00 30.00 3.0 25.0 13.00 10.00 36.00
(1) For the nut
(2) For the nozzle
(3) For the screw
Clamping Screws with
Adjustable Protrusion Nozzles for Shell-Type Face Mills
The protrusion of the nozzle screw can be easily The locking nut can be tightened by a standard
adjusted according to countersink depth, insert size open-ended wrench, or preferably by an offset ring
or any other application requirement. The nozzle wrench (ISO 10104, DIN 838 or DIN 897 standards).
screw position can be secured by a locking nut. If desired, the following ring wrenches
Tests show that cutting fluid supplied through can also be ordered from ISCAR:
the axis of a tool and directed radially at the • 7000783 Ring Wrench 10X13 mm for coolant set
bottom of the tool dramatically improves both SR M20X2.5-40 and Coolant set SR M16X2-32
the cooling effect and chip evacuation. • 7000788 Ring Wrench 6X7 mm for
The screws are offered as sets, comprising a nozzle coolant set SRM12X1.75-27 and
screw, locking screw, a locking nut and washers. coolant set SR M10X1.5-22.
Assembly with a Lock Nut
1 1 2 2 3 3 4 4 5 5 6 6 7 7

7103284 06/08
Assembly without a Lock Nut
1 1 2 2 3 3 4 4 5 5 6 6 7 7

Spare Parts
Designation
COOLANT SET SR M10X1.5-22 WASHER FLAT M4 DIN 433 SPRING PLUNGER
COOLANT SET SRM12X1.75-27 WASHER FLAT M4 DIN 433 SPRING PLUNGER
COOLANT SET SR M16X2-32 WASHER M8 DIN 433 A4 NOZZLE M8 NUT M8 DIN 934 A2
COOLANT SET SR M20X2.5-40 WASHER M8 DIN 433 A4 NOZZLE M8 NUT M8 DIN 934 A2

COOLING TUBE HSK-A
Cooling Tubes for HSK-A Shanks THOD

LB
OAL

Designation OAL LB THOD
COOLING TUBE HSK A32 26.00 5.5 M10X1
COOLING TUBE HSK A40 29.50 7.5 M12X1
COOLING TUBE HSK A50 33.00 9.5 M16X1
COOLING TUBE HSK A63 36.50 11.5 M18X1
COOLING TUBE HSK A80 40.00 13.5 M20X1.5
COOLING TUBE HSK A100 44.00 15.5 M24X1.5
COOLING TUBE HSK A125 48.00 17.5 M30X1.5
