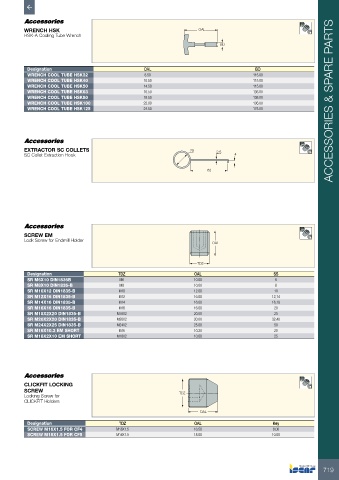

WRENCH HSK OAL
HSK-A Cooling Tube Wrench
BD

Designation OAL BD
WRENCH COOL TUBE HSK32 8.50 115.00
WRENCH COOL TUBE HSK40 10.50 115.00
WRENCH COOL TUBE HSK50 14.50 115.00
WRENCH COOL TUBE HSK63 16.50 136.00
WRENCH COOL TUBE HSK80 18.50 136.00
WRENCH COOL TUBE HSK100 22.00 136.00 ACCESSORIES & SPARE PARTS
WRENCH COOL TUBE HSK125 24.50 175.00

EXTRACTOR SC COLLETS 25 2.5
SC Collet Extraction Hook 4

62

SCREW EM
Lock Screw for Endmill Holder
OAL

TDZ
Designation TDZ OAL SS
SR M6X10 DIN1835B M6 10.00 6
SR M8X10 DIN1835-B M8 10.00 8
SR M10X12 DIN1835-B M10 12.00 10
SR M12X16 DIN1835-B M12 16.00 12,14
SR M14X16 DIN1835-B M14 16.00 16,18
SR M16X16 DIN1835-B M16 16.00 20
SR M18X2X20 DIN1835-B M18X2 20.00 25
SR M20X2X20 DIN1835-B M20X2 20.00 32,40
SR M24X2X25 DIN1835-B M24X2 25.00 50
SR M16X10.3 EM SHORT M16 10.30 20
SR M18X2X10 EM SHORT M18X2 10.00 25

CLICKFIT LOCKING
SCREW TDZ
Locking Screw for
CLICKFIT Holders

OAL
Designation TDZ OAL Key
SCREW M16X1.5 FOR CF4 M16X1.5 16.50 8.00
SCREW M18X1.5 FOR CF5 M18X1.5 18.00 10.00
