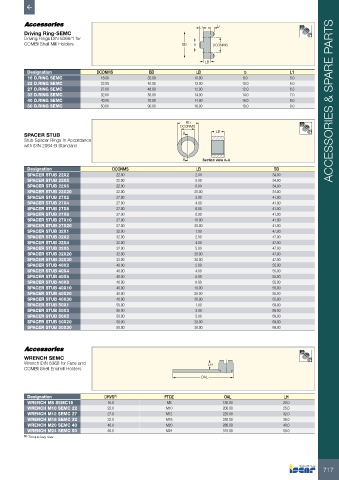

Page 719 - ISCAR(MILLINGCATALOG 38_2021)

L1 L1

Driving Ring-SEMC
Driving Rings DIN 6366/1 for
COMBI Shell Mill Holders BD b DCONMS

LB
Designation DCONMS BD LB b L1
16 D.RING SEMC 16.00 32.00 10.00 8.0 5.0
22 D.RING SEMC 22.00 40.00 12.00 10.0 6.0
27 D.RING SEMC 27.00 48.00 12.00 12.0 6.3
32 D.RING SEMC 32.00 58.00 14.00 14.0 7.0
40 D.RING SEMC 40.00 70.00 14.00 16.0 8.0 ACCESSORIES & SPARE PARTS
50 D.RING SEMC 50.00 90.00 16.00 18.0 9.0

BD
DCONMS
SPACER STUB A LB
Stub Spacer Rings In Accordance
with DIN 2084-B Standard

A Section view A-A
Designation DCONMS LB BD
SPACER STUB 22X2 22.00 2.00 34.00
SPACER STUB 22X5 22.00 5.00 34.00
SPACER STUB 22X6 22.00 6.00 34.00
SPACER STUB 22X20 22.00 20.00 34.00
SPACER STUB 27X2 27.00 2.00 41.00
SPACER STUB 27X4 27.00 4.00 41.00
SPACER STUB 27X6 27.00 6.00 41.00
SPACER STUB 27X8 27.00 8.00 41.00
SPACER STUB 27X10 27.00 10.00 41.00
SPACER STUB 27X20 27.00 20.00 41.00
SPACER STUB 32X1 32.00 1.00 47.00
SPACER STUB 32X2 32.00 2.00 47.00
SPACER STUB 32X4 32.00 4.00 47.00
SPACER STUB 32X5 32.00 5.00 47.00
SPACER STUB 32X20 32.00 20.00 47.00
SPACER STUB 32X30 32.00 30.00 47.00
SPACER STUB 40X2 40.00 2.00 55.00
SPACER STUB 40X4 40.00 4.00 55.00
SPACER STUB 40X5 40.00 5.00 55.00
SPACER STUB 40X6 40.00 6.00 55.00
SPACER STUB 40X10 40.00 10.00 55.00
SPACER STUB 40X20 40.00 20.00 55.00
SPACER STUB 40X30 40.00 30.00 55.00
SPACER STUB 50X1 50.00 1.00 69.00
SPACER STUB 50X3 50.00 3.00 69.00
SPACER STUB 50X5 50.00 5.00 69.00
SPACER STUB 50X20 50.00 20.00 69.00
SPACER STUB 50X30 50.00 30.00 69.00

WRENCH SEMC
Wrench DIN 6368 for Face and LH
COMBI Shell Endmill Holders
OAL

Designation DRVS (1) FTDZ OAL LH
WRENCH M8 SEMC16 16.0 M8 180.00 20.0
WRENCH M10 SEMC 22 22.0 M10 200.00 25.0
WRENCH M12 SEMC 27 27.0 M12 225.00 32.0
WRENCH M16 SEMC 32 32.0 M16 250.00 36.0
WRENCH M20 SEMC 40 40.0 M20 280.00 40.0
WRENCH M24 SEMC 50 50.0 M24 315.00 50.0
(1) Torque key size
