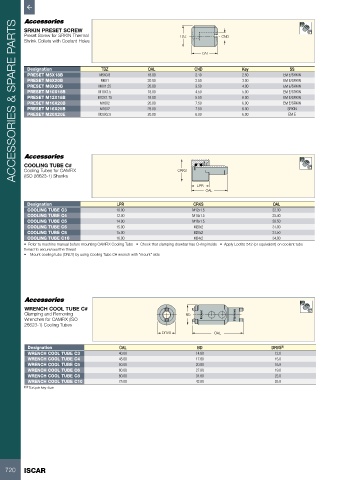

Page 722 - ISCAR(MILLINGCATALOG 38_2021)

ACCESSORIES & SPARE PARTS
SRKIN PRESET SCREW
Preset Screw for SRKIN Thermal TDZ CND
Shrink Collets with Coolant Holes

OAL

Designation TDZ OAL CND Key SS
PRESET M5X18B M5X0.8 18.00 2.10 2.50 EM E/SRKIN
PRESET M6X20B M6X1 20.00 2.50 3.00 EM E/SRKIN
PRESET M8X20B M8X1.25 20.00 3.50 4.00 EM E/SRKIN
PRESET M10X18B M10X1.5 18.00 4.50 5.00 EM E/SRKIN
PRESET M12X18B M12X1.75 18.00 5.50 6.00 EM E/SRKIN
PRESET M16X20B M16X2 20.00 7.50 6.00 EM E/SRKIN
PRESET M16X25B M16X2 25.00 7.50 6.00 SRKIN
PRESET M20X20E M20X2.5 20.00 6.00 6.00 EM E

COOLING TUBE C#
Cooling Tubes for CAMFIX CRKS
(ISO 26623-1) Shanks
LPR
OAL

Designation LPR CRKS OAL
COOLING TUBE C3 10.00 M12x1.5 22.30
COOLING TUBE C4 12.00 M14x1.5 25.40
COOLING TUBE C5 14.00 M16x1.5 28.50
COOLING TUBE C6 15.00 M20x2 31.00
COOLING TUBE C8 15.00 M20x2 31.50
COOLING TUBE C10 16.00 M24x2 34.00
• Refer to machine manual before mounting CAMFIX Cooling Tube • Check that clamping drawbar has O-ring inside • Apply Loctite 542 (or equivalent) on coolant tube
thread to secure/seal the thread
• Mount cooling tube (ONLY) by using Cooling Tube C# wrench with "mount" side

WRENCH COOL TUBE C#
Clamping and Removing BD Mount Remove
Wrenches for CAMFIX (ISO
26623-1) Cooling Tubes
DRVS OAL

Designation OAL BD DRVS (1)
WRENCH COOL TUBE C3 40.00 14.80 12.0
WRENCH COOL TUBE C4 45.00 17.80 15.0
WRENCH COOL TUBE C5 50.00 20.80 16.9
WRENCH COOL TUBE C6 60.00 27.80 19.0
WRENCH COOL TUBE C8 60.00 31.80 22.0
WRENCH COOL TUBE C10 75.00 42.80 25.9
(1) Torque key size
