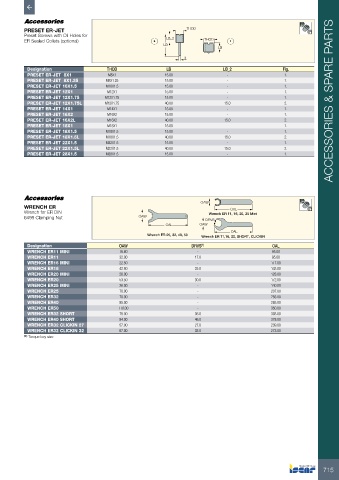

Page 717 - ISCAR(MILLINGCATALOG 38_2021)

PRESET ER-JET THOD
Preset Screws with Oil Holes for LB_2
ER Sealed Collets (optional) 2 THOD 1
LB
LB
3
Designation THOD LB LB_2 Fig.
PRESET ER-JET 8X1 M8X1 15.00 - 1.
PRESET ER-JET 8X1.25 M8X1.25 15.00 - 1.
PRESET ER-JET 10X1.5 M10X1.5 15.00 - 1.
PRESET ER-JET 12X1 M12X1 15.00 - 1.
PRESET ER-JET 12X1.75 M12X1.75 15.00 - 1.
PRESET ER-JET 12X1.75L M12X1.75 40.00 15.0 2. ACCESSORIES & SPARE PARTS
PRESET ER-JET 14X1 M14X1 15.00 - 1.
PRESET ER-JET 16X2 M16X2 15.00 - 1.
PRESET ER-JET 16X2L M16X2 40.00 15.0 2.
PRESET ER-JET 18X1 M18X1 15.00 - 1.
PRESET ER-JET 18X1.5 M18X1.5 15.00 - 1.
PRESET ER-JET 18X1.5L M18X1.5 40.00 15.0 2.
PRESET ER-JET 22X1.5 M22X1.5 15.00 - 1.
PRESET ER-JET 22X1.5L M22X1.5 40.00 15.0 2.
PRESET ER-JET 28X1.5 M28X1.5 15.00 - 1.

WRENCH ER OAW OAL
Wrench for ER DIN Wrench ER 11, 16, 20, 25 Mini
6499 Clamping Nut OAW
DRVS
OAL OAW
OAL
Wrench ER 25, 32, 40, 50 Wrench ER 11,16, 20, SHORT, CLICKIN
Designation OAW DRVS (1) OAL
WRENCH ER11 MINI 16.80 - 95.00
WRENCH ER11 32.00 17.0 95.00
WRENCH ER16 MINI 22.50 - 117.00
WRENCH ER16 42.80 25.0 143.00
WRENCH ER20 MINI 28.00 - 128.00
WRENCH ER20 53.50 30.0 172.00
WRENCH ER25 MINI 36.00 - 140.00
WRENCH ER25 70.00 - 207.00
WRENCH ER32 78.00 - 255.00
WRENCH ER40 95.00 - 285.00
WRENCH ER50 110.00 - 350.00
WRENCH ER32 SHORT 75.00 36.0 303.00
WRENCH ER40 SHORT 94.00 46.0 378.00
WRENCH ER32 CLICKIN 27 57.00 27.0 239.00
WRENCH ER32 CLICKIN 32 67.00 32.0 273.00
(1) Torque key size
