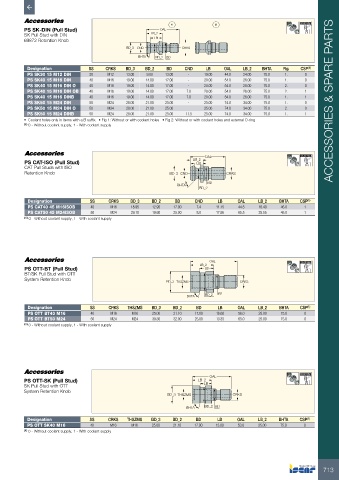

Page 715 - ISCAR(MILLINGCATALOG 38_2021)

1 2 58-60 HRc

PS SK-DIN (Pull Stud) OAL
SK Pull Stud with DIN LB_2
69872 Retention Knob LB
BD_3 CND CRKS
BHTA BD_2 BD
Designation SS CRKS BD_3 BD_2 BD CND LB OAL LB_2 BHTA Fig. CSP (1)
PS SK30 15 M12 DIN 30 M12 13.00 9.00 13.00 - 19.00 44.0 24.00 75.0 1. 0
PS SK40 15 M16 DIN 40 M16 19.00 14.00 17.00 - 20.00 54.0 26.00 75.0 1. 0
PS SK40 15 M16 DIN O 40 M16 19.00 14.00 17.00 - 20.00 54.0 26.00 75.0 2. 0
PS SK40 15 M16 DIN OB 40 M16 19.00 14.00 17.00 7.0 20.00 54.0 26.00 75.0 2. 1
PS SK40 15 M16 DINB 40 M16 19.00 14.00 17.00 7.0 20.00 54.0 26.00 75.0 1. 1
PS SK50 15 M24 DIN 50 M24 28.00 21.00 25.00 - 25.00 74.0 34.00 75.0 1. 0 ACCESSORIES & SPARE PARTS
PS SK50 15 M24 DIN O 50 M24 28.00 21.00 25.00 - 25.00 74.0 34.00 75.0 2. 0
PS SK50 15 M24 DINB 50 M24 28.00 21.00 25.00 11.5 25.00 74.0 34.00 75.0 1. 1
• Coolant holes only in items with a B suffix • Fig 1: Without or with coolant holes • Fig 2: Without or with coolant holes and external O-ring
(1) 0 - Without coolant supply, 1 - With coolant supply

OAL 58-60 HRc

PS CAT-ISO (Pull Stud) LB_2
LB
CAT Pull Studs with ISO
Retention Knob BD_3 CND CRKS
BD
BHTA
BD_2
Designation SS CRKS BD_3 BD_2 BD CND LB OAL LB_2 BHTA CSP (1)
PS CAT40 45 M16ISOB 40 M16 18.95 12.95 17.00 7.4 11.15 44.5 16.40 45.0 1
PS CAT50 45 M24ISOB 50 M24 29.10 19.60 25.00 8.0 17.95 65.5 25.55 45.0 1
(1) 0 - Without coolant supply, 1 - With coolant supply

OAL 58-60 HRc
PS OTT-BT (Pull Stud) LB_2 LB
BT/SK Pull Stud with OTT
System Retention Knob BD_3 THSZMS CRKS

BHTA BD_2 BD

Designation SS CRKS THSZMS BD_3 BD_2 BD LB OAL LB_2 BHTA CSP (1)
PS OTT BT40 M16 40 M16 M16 25.00 21.10 17.00 16.60 56.0 28.00 75.0 0
PS OTT BT50 M24 50 M24 M24 39.30 32.00 25.00 13.35 65.0 25.00 75.0 0
(1) 0 - Without coolant supply, 1 - With coolant supply

58-60 HRc

PS OTT-SK (Pull Stud) LB_2 OAL
SK Pull Stud with OTT LB
System Retention Knob
BD_3 THSZMS CRKS

BHTA BD_2 BD
Designation SS CRKS THSZMS BD_3 BD_2 BD LB OAL LB_2 BHTA CSP (1)
PS OTT SK40 M16 40 M16 M16 25.00 21.10 17.00 13.00 53.0 25.00 75.0 0
(1) 0 - Without coolant supply, 1 - With coolant supply

713
