USER GUIDE
ER, SC & SHRINK COLLETS

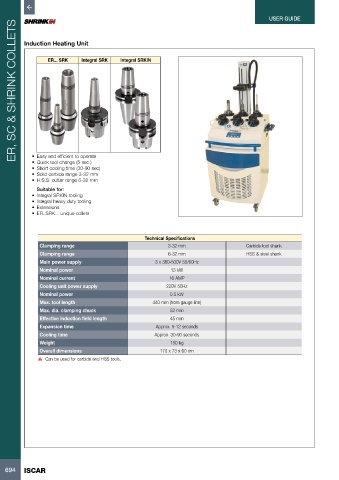

Induction Heating Unit

ER... SRK Integral SRK Integral SRKIN

• Easy and efficient to operate
• Quick tool change (5 sec.)
• Short cooling time (30-90 sec)
• Solid carbide range 3-32 mm
• H.S.S. cutter range 6-32 mm
Suitable for:
• Integral SRKIN tooling
• Integral heavy duty tooling
• Extensions
• ER..SRK... unique collets

Technical Specifications
Clamping range 3-32 mm Carbide tool shank
Clamping range 6-32 mm HSS & steel shank
Main power supply 3 x 380-500V 50/60Hz
Nominal power 13 kW
Nominal current 16 AMP
Cooling unit power supply 220V 50Hz
Nominal power 0.5 kW
Max. tool length 440 mm (from gauge line)
Max. dia. clamping chuck 52 mm
Effective induction field length 45 mm
Expansion time Approx. 5-12 seconds
Cooling time Approx. 30-90 seconds
Weight 150 kg
Overall dimensions 170 x 73 x 60 cm
Can be used for carbide and HSS tools.
