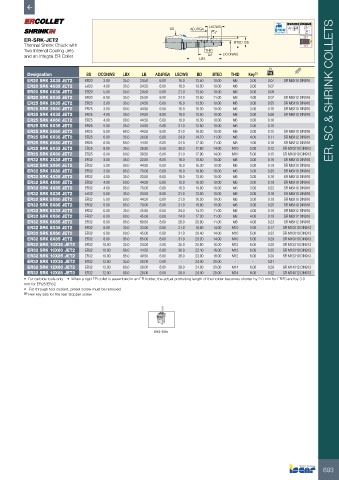

Page 695 - ISCAR(MILLINGCATALOG 38_2021)

A 0.003 A 58-60 HRc
SS ADJRGA LSCWS Bar Max
4˚
ER-SRK-JET2 BTED BD
Thermal Shrink Chuck with
Two Internal Cooling Jets THID
and an Integral ER Collet LB DCONWS
LBX

Designation SS DCONWS LBX LB ADJRGA LSCWS BD BTED THID Key (1) kg
ER20 SRK 3X35 JET2 ER20 3.00 35.0 24.50 6.00 16.0 13.50 10.00 M6 3.00 0.07 SR M6X10 DIN916
ER20 SRK 4X35 JET2 ER20 4.00 35.0 24.50 6.00 18.0 13.50 10.00 M6 3.00 0.07
ER20 SRK 5X35 JET2 ER20 5.00 35.0 24.50 6.00 21.0 13.50 10.00 M6 3.00 0.09 ER, SC & SHRINK COLLETS
ER20 SRK 6X35 JET2 ER20 6.00 35.0 25.50 6.00 24.0 13.50 11.00 M8 4.00 0.07 SR M8X12 DIN916
ER25 SRK 3X35 JET2 ER25 3.00 35.0 24.50 6.00 16.0 13.50 10.00 M6 3.00 0.55 SR M6X10 DIN916
ER25 SRK 3X60 JET2 ER25 3.00 60.0 44.50 6.00 16.0 16.30 10.00 M6 3.00 0.16 SR M6X10 DIN916
ER25 SRK 4X35 JET2 ER25 4.00 35.0 24.50 6.00 18.0 13.50 10.00 M6 3.00 0.58 SR M6X10 DIN916
ER25 SRK 4X60 JET2 ER25 4.00 60.0 44.50 6.00 18.0 16.30 10.00 M6 3.00 0.16
ER25 SRK 5X35 JET2 ER25 5.00 35.0 24.50 6.00 21.0 13.50 10.00 M6 3.00 0.10
ER25 SRK 5X60 JET2 ER25 5.00 60.0 44.50 6.00 21.0 16.30 10.00 M6 3.00 0.15 SR M6X10 DIN916
ER25 SRK 6X35 JET2 ER25 6.00 35.0 26.00 6.00 24.0 14.70 11.00 M8 4.00 0.11 SR M8X12 DIN916
ER25 SRK 6X60 JET2 ER25 6.00 60.0 44.50 6.00 24.0 17.30 11.00 M8 4.00 0.16 SR M8X12 DIN916
ER25 SRK 8X35 JET2 ER25 8.00 35.0 26.50 5.00 30.0 17.80 14.00 M10 5.00 0.12 SR M10X10 DIN913
ER25 SRK 8X60 JET2 ER25 8.00 60.0 39.50 6.00 31.0 17.90 14.00 M10 5.00 0.15 SR M10X10 DIN913
ER32 SRK 3X35 JET2 ER32 3.00 35.0 22.50 6.00 16.0 13.50 10.00 M6 3.00 0.16 SR M6X10 DIN916
ER32 SRK 3X60 JET2 ER32 3.00 60.0 44.50 6.00 16.0 16.30 10.00 M6 3.00 0.19 SR M6X10 DIN916
ER32 SRK 3X85 JET2 ER32 3.00 85.0 70.00 6.00 16.0 19.80 10.00 M6 3.00 0.25 SR M6X10 DIN916
ER32 SRK 4X35 JET2 ER32 4.00 35.0 23.50 6.00 18.0 13.50 10.00 M6 3.00 0.16 SR M6X10 DIN916
ER32 SRK 4X60 JET2 ER32 4.00 60.0 44.50 6.00 18.0 16.30 10.00 M6 3.00 0.19 SR M6X10 DIN916
ER32 SRK 4X85 JET2 ER32 4.00 85.0 70.00 6.00 18.0 19.80 10.00 M6 3.00 0.22 SR M6X10 DIN916
ER32 SRK 5X35 JET2 ER32 5.00 35.0 24.50 6.00 21.0 13.50 10.00 M6 3.00 0.16 SR M6X10 DIN916
ER32 SRK 5X60 JET2 ER32 5.00 60.0 44.50 6.00 21.0 16.30 10.00 M6 3.00 0.19 SR M6X10 DIN916
ER32 SRK 5X85 JET2 ER32 5.00 85.0 70.00 6.00 21.0 19.80 10.00 M6 3.00 0.25 SR M6X10 DIN916
ER32 SRK 6X35 JET2 ER32 6.00 35.0 25.50 6.00 24.0 14.70 11.00 M8 4.00 0.15 SR M8X12 DIN916
ER32 SRK 6X60 JET2 ER32 6.00 60.0 45.00 6.00 24.0 17.30 11.00 M8 4.00 0.19 SR M8X12 DIN916
ER32 SRK 6X85 JET2 ER32 6.00 85.0 69.50 8.00 26.0 20.80 11.00 M8 4.00 0.23 SR M8X12 DIN916
ER32 SRK 8X35 JET2 ER32 8.00 35.0 33.00 6.00 31.0 18.80 14.00 M10 5.00 0.17 SR M10X10 DIN913
ER32 SRK 8X60 JET2 ER32 8.00 60.0 45.00 6.00 31.0 20.40 14.00 M10 5.00 0.22 SR M10X10 DIN913
ER32 SRK 8X85 JET2 ER32 8.00 85.0 65.00 6.00 31.0 23.20 14.00 M10 5.00 0.29 SR M10X10 DIN913
ER32 SRK 10X35 JET2 ER32 10.00 35.0 34.00 5.00 35.0 20.80 16.00 M12 6.00 0.20 SR M12X10 DIN913
ER32 SRK 10X60 JET2 ER32 10.00 60.0 44.50 6.00 36.0 22.40 16.00 M12 6.00 0.25 SR M12X10 DIN913
ER32 SRK 10X85 JET2 ER32 10.00 85.0 49.50 6.00 36.0 23.00 16.00 M12 6.00 0.30 SR M12X10 DIN913
ER32 SRK 12X35 JET2 ER32 12.00 35.0 28.00 0.00 - 24.00 20.00 - - 0.21
ER32 SRK 12X60 JET2 ER32 12.00 60.0 28.00 6.00 38.0 24.00 20.00 M14 6.00 0.29 SR M14X12 DIN913
ER32 SRK 12X85 JET2 ER32 12.00 85.0 28.00 6.00 38.0 24.00 20.00 M14 6.00 0.32 SR M14X12 DIN913
• For carbide tools only • When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by 2.0 mm for ER20 and by 3.0
mm for ER25/ER32
• For through tool coolant, preset screw must be removed
(1) Hex key size for the rear stopper screw
