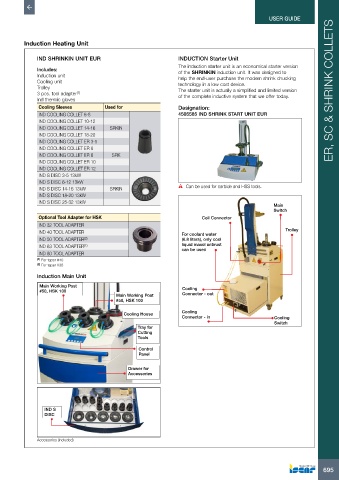

Page 697 - ISCAR(MILLINGCATALOG 38_2021)

USER GUIDE

Induction Heating Unit

IND SHRINKIN UNIT EUR INDUCTION Starter Unit
The induction starter unit is an economical starter version
Includes: of the SHRINKIN induction unit. It was designed to
Induction unit help the end-user purchase the modern shrink chucking
Cooling unit technology in a low cost device.
Trolley The starter unit is actually a simplified and limited version
3 pcs. tool adapter (1) of the complete inductive system that we offer today. ER, SC & SHRINK COLLETS
Ind thermic gloves
Cooling Sleeves Used for Designation:
IND COOLING COLLET 6-8 4505585 IND SHRINK START UNIT EUR
IND COOLING COLLET 10-12
IND COOLING COLLET 14-16 SRKIN
IND COOLING COLLET 18-20
IND COOLING COLLET ER 3-5
IND COOLING COLLET ER 6
IND COOLING COLLET ER 8 SRK
IND COOLING COLLET ER 10
IND COOLING COLLET ER 12
IND S DISC 3-5 13kW
IND S DISC 6-12 13kW
IND S DISC 14-16 13kW SRKIN Can be used for carbide and HSS tools.
IND S DISC 18-20 13kW
IND S DISC 25-32 13kW
Main
Switch
Optional Tool Adapter for HSK Coil Connector
IND 32 TOOL ADAPTER
IND 40 TOOL ADAPTER For coolant water Trolley
IND 50 TOOL ADAPTER (2) (6.8 liters), only cool
IND 63 TOOL ADAPTER (1) liquid maxol antirust
can be used
IND 80 TOOL ADAPTER
(1) For taper #40
(2) For taper #30
Induction Main Unit
Main Working Post Cooling
#50, HSK 100
Main Working Post Connector - out
#50, HSK 100

Cooling
Cooling House
Connector - in Cooling
Switch
Tray for
Cutting
Tools
Control
Panel

Drawer for
Accessories

IND S
DISC

Accessories (included)

695
