USER GUIDE
ER, SC & SHRINK COLLETS

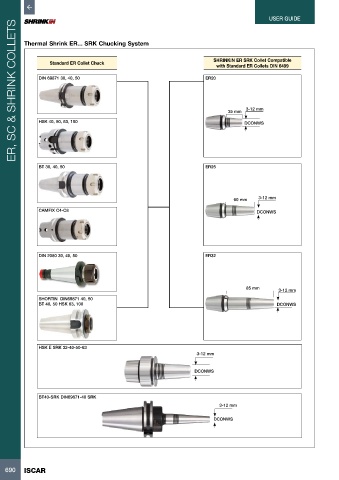

Thermal Shrink ER... SRK Chucking System
SHRINKIN ER SRK Collet Compatible
Standard ER Collet Chuck
with Standard ER Collets DIN 6499
DIN 69871 30, 40, 50 ER20
3-12 mm
35 mm
HSK 40, 50, 63, 100 DCONWS
BT 30, 40, 50 ER25
60 mm 3-12 mm
CAMFIX C4-C8 DCONWS
DIN 2080 30, 40, 50 ER32
85 mm 3-12 mm
SHORTIN DIN69871 40, 50
BT 40, 50 HSK 63, 100 DCONWS
HSK E SRK 32-40-50-63
3-12 mm
DCONWS
BT40-SRK DIN69871-40 SRK
3-12 mm
DCONWS
