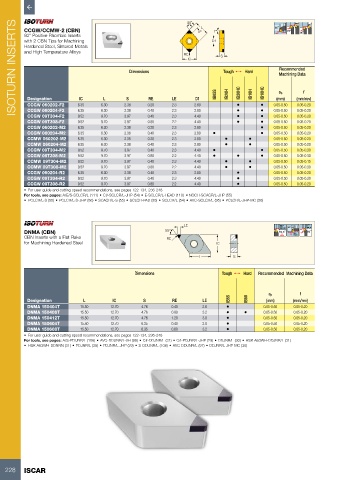

Page 230 - ISCAR(TURNING-CATALOG-42-2022)

ISOTURN INSERTS CCGW/CCMW-2 (CBN) Dimensions RE 80˚ LE L D1 7° IB05S S Tough 1 Hard IB10H IB10HC 95 º Machining Data f 95 º
99°
91°
95 º
80° Positive Rhombic Inserts

with 2 CBN Tips for Machining
Hardened Steel, Sintered Metals
and High Temperature Alloys
IC
Recommended

IB20HC
IB20H
ap
Designation
RE
D1
L
IC
(mm)
S
2.3
0.05-0.20
CCGW 060202-F2
•
•
6.30
0.05-0.20
6.35
0.05-0.50
2.80
2.3
2.38
0.40
CCGW 060204-F2
•
•
CCGW 09T304-F2
9.70
0.40
2.3
4.40
3.97
0.05-0.20
9.52
0.05-0.50
•
•
CCGW 09T308-F2 6.35 6.30 2.38 0.20 LE 2.80 • • 0.05-0.50 (mm/rev)
2.2
0.05-0.20
0.80
4.40
9.70
9.52
3.97
0.05-0.50
CCGW 060202-M2 6.35 6.30 2.38 0.20 2.3 2.80 • 0.05-0.50 0.05-0.20
CCGW 060204-M2 6.35 6.30 2.38 0.40 2.3 2.80 • • 0.05-0.50 0.05-0.20
CCMW 060202-M2 6.35 6.30 2.38 0.20 2.3 2.80 • • 0.05-0.50 0.05-0.20
CCMW 060204-M2 6.35 6.30 2.38 0.40 2.3 2.80 • • 0.05-0.50 0.05-0.20
CCGW 09T304-M2 9.52 9.70 3.97 0.40 2.3 4.40 • • 0.05-0.50 0.05-0.30
CCGW 09T308-M2 9.52 9.70 3.97 0.80 2.2 4.40 • • • 0.05-0.50 0.05-0.30
CCMW 09T304-M2 9.52 9.70 3.97 0.40 2.3 4.40 • • 0.05-0.50 0.05-0.15
CCMW 09T308-M2 9.52 9.70 3.97 0.80 2.2 4.40 • • 0.05-0.50 0.05-0.30
CCGW 060204-R2 6.35 6.30 2.38 0.40 2.3 2.80 • 0.05-0.50 0.05-0.20
CCGW 09T304-R2 9.52 9.70 3.97 0.40 2.3 4.40 • 0.05-0.50 0.05-0.20
CCGW 09T308-R2 9.52 9.70 3.97 0.80 2.2 4.40 • 0.05-0.50 0.05-0.20
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55)
• PCLCR/L-S (55) • PCLCR/L-S-JHP (56) • SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)

LE 60° 27°
MAX
DNMA (CBN) 55° 62.5 º 93º-95º 50º MAX
93 º
CBN Inserts with a Flat Rake RE MAX
for Machining Hardened Steel IC
L S
Dimensions Tough 1 Hard Recommended Machining Data
ap f
Designation L IC S RE LE IB55 IB50 (mm) (mm/rev)
DNMA 150404T 15.50 12.70 4.76 0.40 2.8 • 0.05-0.50 0.05-0.20
DNMA 150408T 15.50 12.70 4.76 0.80 3.2 • • 0.05-0.50 0.05-0.20
DNMA 150412T 15.50 12.70 4.76 1.20 3.0 • 0.05-0.50 0.05-0.20
DNMA 150604T 15.50 12.70 6.35 0.40 2.8 • 0.05-0.50 0.05-0.20
DNMA 150608T 15.50 12.70 6.35 0.80 3.2 • 0.05-0.50 0.05-0.20
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PDUNR/L (106) • AVC-DDUNR/L-VH (98) • C#-DDJNR/L (31) • C#-PDJNR/L-JHP (29) • DDJNR/L (30) • HSK A63WH-DDJNR/L (31)
• HSK A63WH-DDNNN (31) • PDJNR/L (28) • PDJNR/L-JHP (29) • S-DDUNR/L (106) • AVC-DDUNR/L (97) • DDJNR/L-JHP-MC (30)

228 ISCAR
