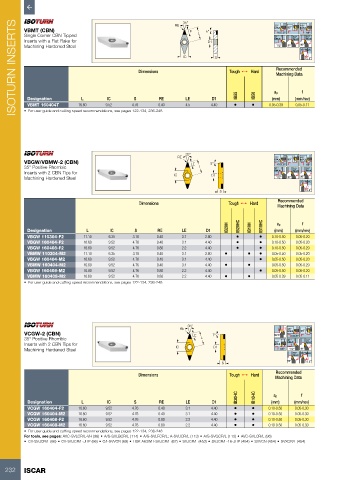

ISOTURN INSERTS VBMT (CBN) Dimensions RE 35° LE L 5° D1 S Tough 1 Hard 35° 112° 95 º 52° 48° 72.5 º
MAX
MAX
107.5º
95º
Single Corner CBN Tipped
31°
50°
MAX
MAX
MAX
Inserts with a Flat Rake for
Machining Hardened Steel
93°
91°
70°MAX
IC
Recommended
Machining Data
f
ap
S
L
IC
(mm)
D1
RE
Designation
4.76
9.52
16.60
0.40
0.05-0.11
VBMT 160404T
4.5
• For user guide and cutting speed recommendations, see pages 122-134, 236-248 LE 4.40 • IB55 • IB50 0.05-0.39 (mm/rev)
RE 35° 35° 48°
VBGW/VBMW-2 (CBN) LE 5° MAX 95 º MAX
95º
35° Positive Rhombic L 31° 107.5º 52° 50°
Inserts with 2 CBN Tips for IC MAX MAX MAX
Machining Hardened Steel D1 112° 91° 93°
70°MAX
S 72.5 º
Recommended
Dimensions Tough 1 Hard
Machining Data
IB20H IB20HC IB10H IB10HC ap f
Designation L IC S RE LE D1 (mm) (mm/rev)
VBGW 110304-F2 11.10 6.35 3.18 0.40 3.1 2.80 • • 0.10-0.50 0.05-0.20
VBGW 160404-F2 16.60 9.52 4.76 0.40 3.1 4.40 • • 0.10-0.50 0.05-0.20
VBGW 160408-F2 16.60 9.52 4.76 0.80 2.2 4.40 • • 0.10-0.50 0.05-0.20
VBMW 110304-M2 11.10 6.35 3.18 0.40 3.1 2.80 • • • 0.05-0.50 0.05-0.20
VBGW 160404-M2 16.60 9.52 4.76 0.40 3.1 4.40 • 0.05-0.50 0.05-0.20
VBMW 160404-M2 16.60 9.52 4.76 0.40 3.1 4.40 • • 0.05-0.50 0.05-0.20
VBGW 160408-M2 16.60 9.52 4.76 0.80 2.2 4.40 • 0.05-0.50 0.05-0.20
VBMW 160408-M2 16.60 9.52 4.76 0.80 2.2 4.40 • • 0.05-0.39 0.05-0.11
• For user guide and cutting speed recommendations, see pages 122-134, 236-248

RE 35°
MAX
VCGW-2 (CBN) LE 7° 117.5° 35° 107.5º 95 º
35° Positive Rhombic L 31° 52°
Inserts with 2 CBN Tips for D1 48° MAX MAX
MAX
Machining Hardened Steel IC 95º 112° 91°
50° 70°MAX
MAX
93° 72.5 º
S
Dimensions Tough 1 Hard Recommended
Machining Data

IB20HC IB10HC ap f
Designation L IC S RE LE D1 (mm) (mm/rev)
VCGW 160404-F2 16.60 9.52 4.76 0.40 3.1 4.40 • • 0.10-0.50 0.05-0.30
VCGW 160404-M2 16.60 9.52 4.76 0.40 3.1 4.40 • • 0.10-0.50 0.05-0.30
VCGW 160408-F2 16.60 9.52 4.76 0.80 2.2 4.40 • • 0.10-0.50 0.05-0.30
VCGW 160408-M2 16.60 9.52 4.76 0.80 2.2 4.40 • • 0.10-0.50 0.05-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: AVC-SVLCR/L-VH (98) • A/S-SVLBCR/L (114) • A/S-SVLFCR/L; A-SVUCR/L (113) • A/S-SVQCR/L (113) • AVC-SVLCR/L (96)
• C#-SVJCR/L (66) • C#-SVJCR/L-JHP (66) • C#-SVVCN (69) • HSK A63WH-SVJCR/L (67) • SVJCR/L (453) • SVJCR/L-16-JHP (454) • SVVCN (454) • SVXCR/L (454)

232 ISCAR
