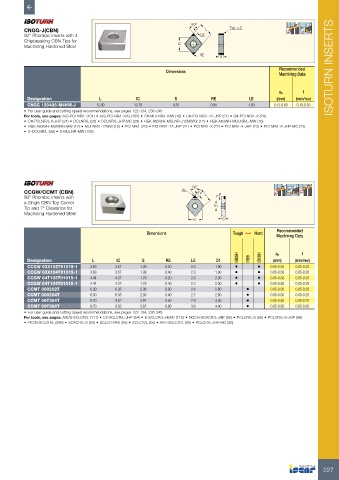

Page 229 - ISCAR(TURNING-CATALOG-42-2022)

80º 95 º
CNGG-J(CBN) L Typ. x 2 95 º 95 º
80° Rhombic Inserts with 4 LE
Chipbreaking CBN Tips for
Machining Hardened Steel IC
RE S

Dimensions Recommended ISOTURN INSERTS
Machining Data

ap f
Designation L IC S RE LE (mm) (mm/rev)
CNGG 120408-M4HM-J 12.90 12.70 4.76 0.80 1.50 0.12-0.80 0.10-0.30
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/S-PCLNR/L (101) • A/S-PCLNR/L-X/G (102) • C#-MULNR/L-MW (16) • C#-PCLNR/L-12-JHP (21) • C#-PCLNR/L-X (24)
• C#-PCLNR/L-X-JHP (24) • DCLNR/L (25) • DCLNR/L-JHP-MC (25) • HSK A63WH-MULNR-J12MWX2 (17) • HSK A63WH-MULNR/L-MW (16)
• HSK A63WH-MUMNN-MW (17) • MULNR/L-12MW (15) • PCLNR/L (20) • PCLNR/L-12-JHP (21) • PCLNR/L-X (22) • PCLNR/L-X-JHP (23) • PCLNR/L-X-JHP-MC (23)
• S-DCLNR/L (99) • S-MULNR-MW (105)

80° 95 º 99°
CCGW/CCMT (CBN) RE LE 95 º 95 º 91°
80° Rhombic Inserts with L 7°
a Single CBN Top Corner
Tip and 7° Clearance for D1
Machining Hardened Steel
IC S
Recommended
Dimensions Tough 1 Hard
Machining Data

IB05H IB10H ap f
Designation L IC S RE LE D1 IB55 (mm) (mm/rev)
CCGW 03X102T01015-1 3.63 3.57 1.39 0.20 2.0 1.90 • • 0.05-0.50 0.05-0.20
CCGW 03X104T01015-1 3.63 3.57 1.39 0.40 2.3 1.90 • • 0.05-0.50 0.05-0.20
CCGW 04T102T01015-1 4.44 4.37 1.79 0.20 2.0 2.30 • • 0.05-0.50 0.05-0.20
CCGW 04T104T01015-1 4.44 4.37 1.79 0.40 2.3 2.30 • • 0.05-0.50 0.05-0.20
CCMT 060202T 6.30 6.35 2.38 0.20 2.6 2.80 • 0.05-0.50 0.05-0.20
CCMT 060204T 6.30 6.35 2.38 0.40 2.7 2.80 • 0.05-0.50 0.05-0.20
CCMT 09T304T 9.70 9.52 3.97 0.40 2.9 4.40 • 0.05-0.50 0.05-0.20
CCMT 09T308T 9.70 9.52 3.97 0.80 3.6 4.40 • 0.05-0.50 0.05-0.20
• For user guide and cutting speed recommendations, see pages 122-134, 236-248
For tools, see pages: A/E/S-SCLCR/L (111) • C#-SCLCR/L-JHP (54) • E-SCLCR/L-HEAD (110) • NQCH-SCACR/L-JHP (55) • PCLCR/L-S (55) • PCLCR/L-S-JHP (56)
• PICIN-SCLCR/L (386) • SCACR/L-S (55) • SCLCR-PAD (55) • SCLCR/L (54) • AVC-SCLCR/L (95) • PCLCR/L-JHP-MC (56)
