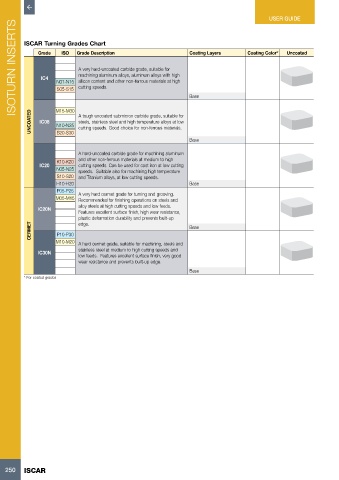

Page 252 - ISCAR(TURNING-CATALOG-42-2022)

USER GUIDE
ISOTURN INSERTS ISCAR Turning Grades Chart Coating Layers Coating Color* Uncoated

Grade
Grade Description
ISO
A very hard-uncoated carbide grade, suitable for
machining aluminum alloys, aluminum alloys with high
IC4
silicon content and other non-ferrous materials at high
N01-N15
cutting speeds.
S05-S15

UNCOATED IC08 M15-M30 A tough uncoated submicron carbide grade, suitable for Base
steels, stainless steel and high temperature alloys at low
N10-N25
cutting speeds. Good choice for non-ferrous materials.
S20-S30
Base

A hard-uncoated carbide grade for machining aluminum
K10-K20 and other non-ferrous materials at medium to high
IC20 cutting speeds. Can be used for cast iron at low cutting
N05-N25 speeds. Suitable also for machining high temperature
S10-S20 and Titanium alloys, at low cutting speeds.
H10-H20 Base
P05-P25 A very hard cermet grade for turning and grooving.
M05-M15 Recommended for finishing operations on steels and
alloy steels at high cutting speeds and low feeds.
IC20N
Features excellent surface finish, high wear resistance,
plastic deformation durability and prevents built-up
edge.
CERMET P10-P30 Base

M10-M20 A hard cermet grade, suitable for machining, steels and

IC30N stainless steel at medium to high cutting speeds and
low feeds. Features excellent surface finish, very good
wear resistance and prevents built-up edge.
Base
* For coated grades

250 ISCAR
